Half Flat Element Hollow (HFEH)

Description

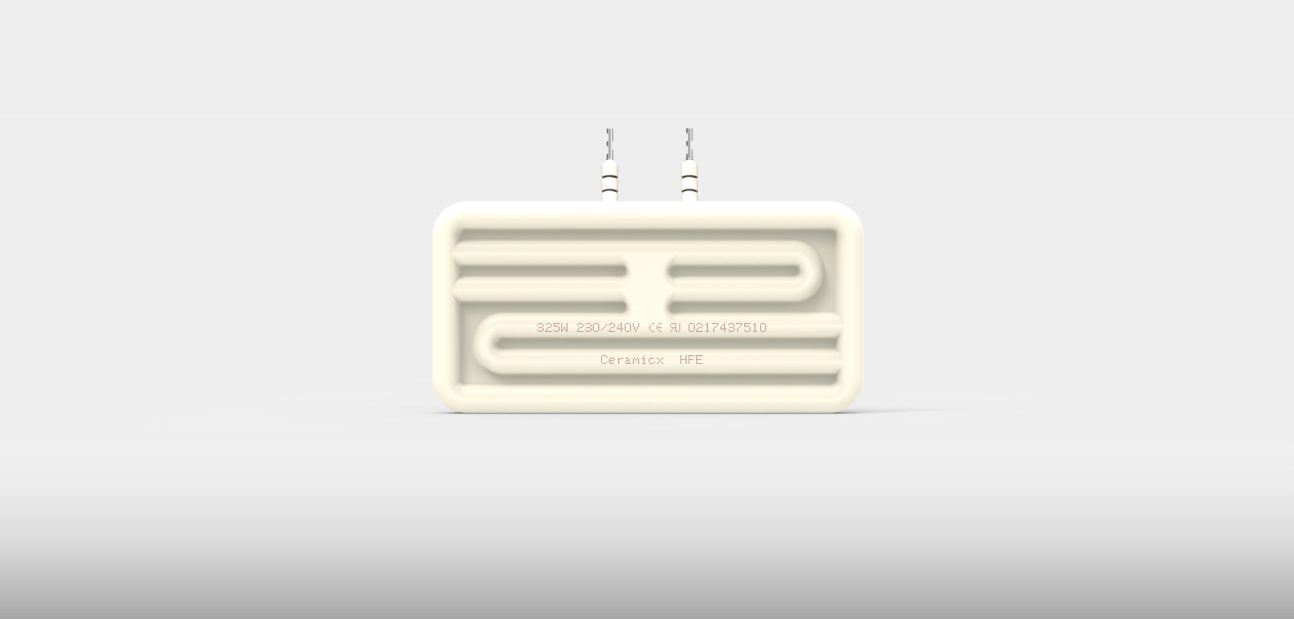

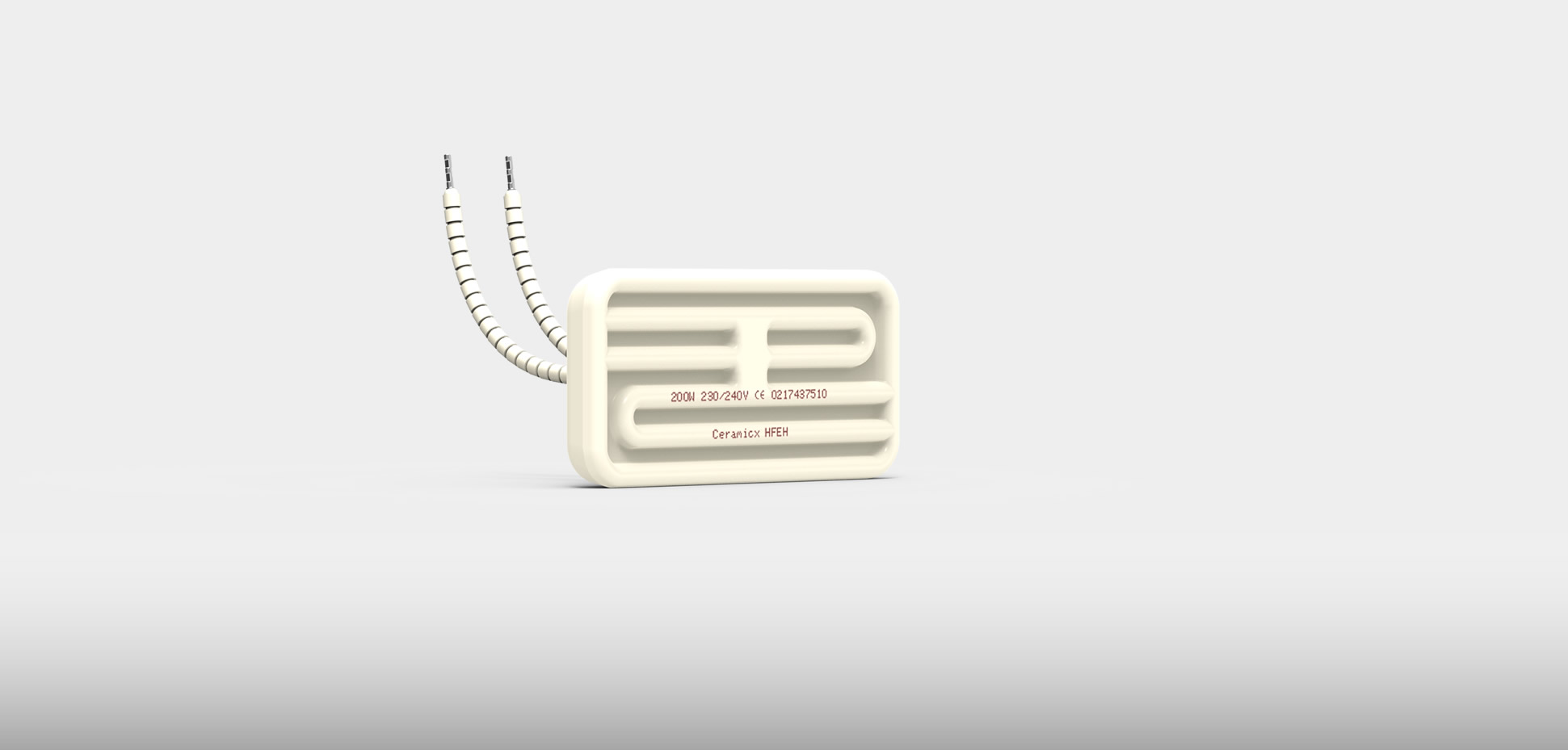

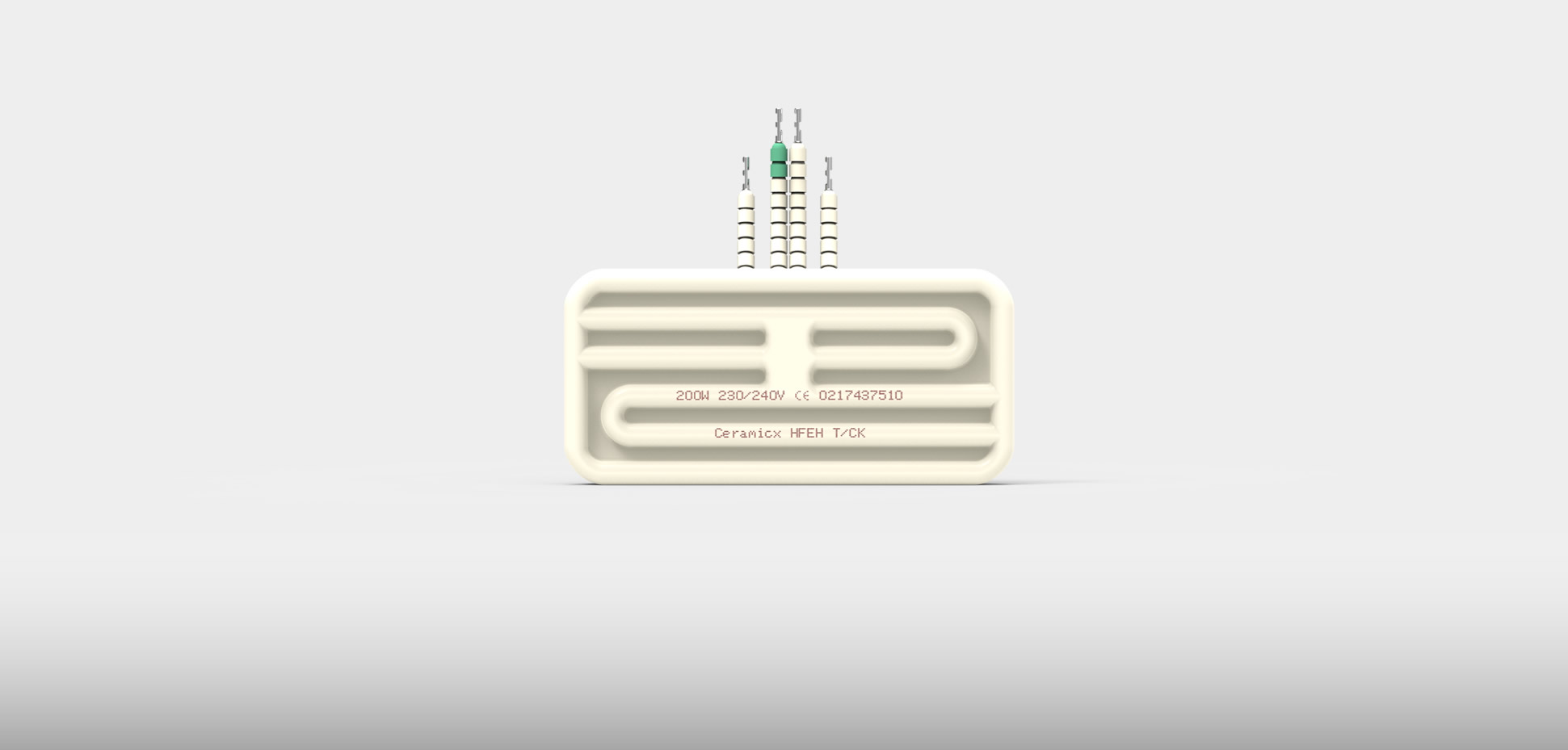

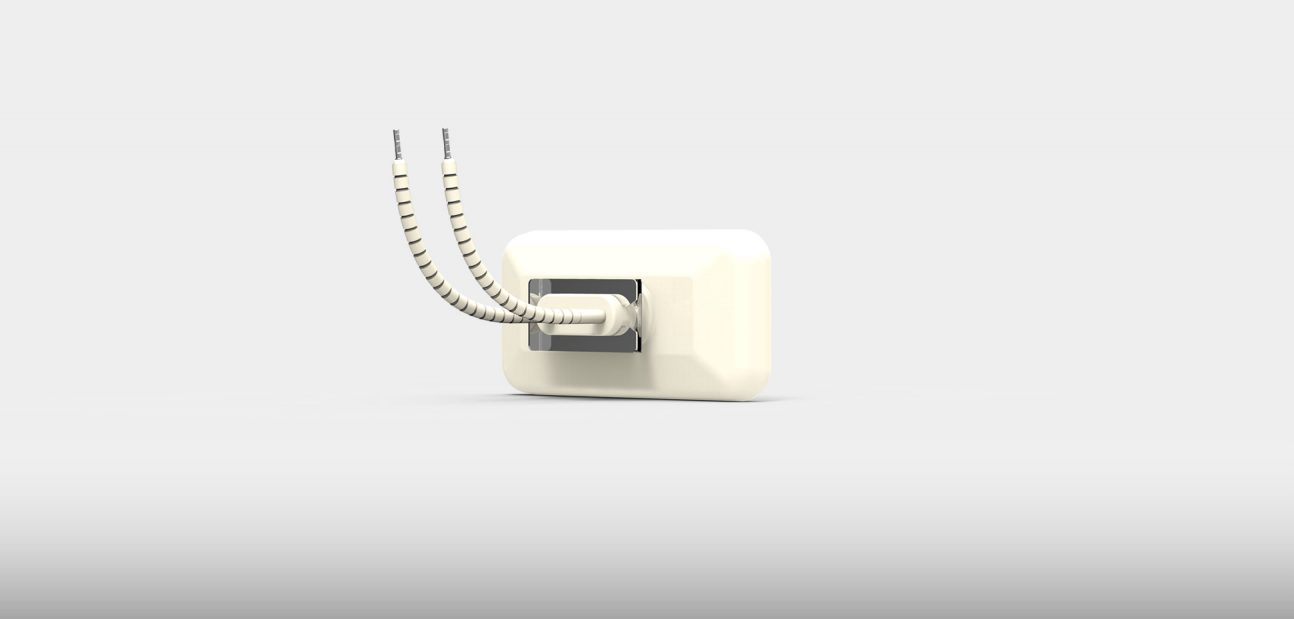

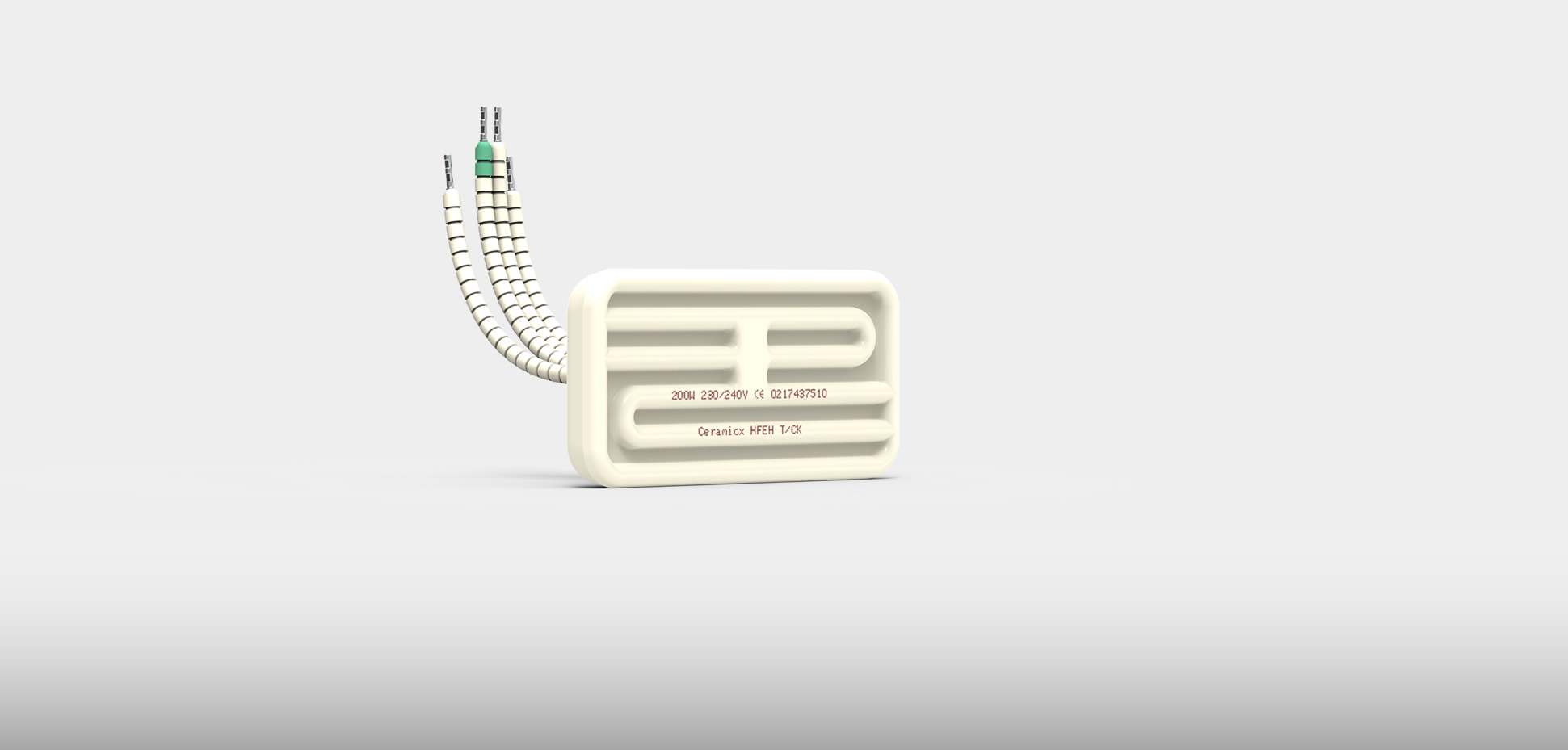

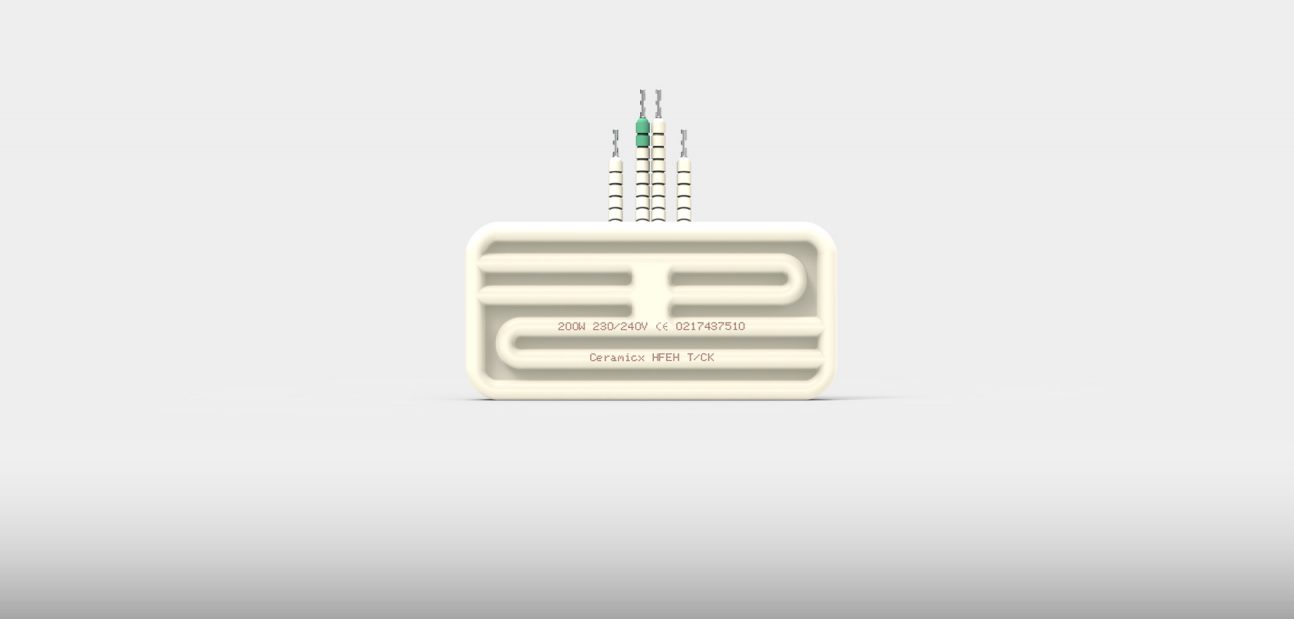

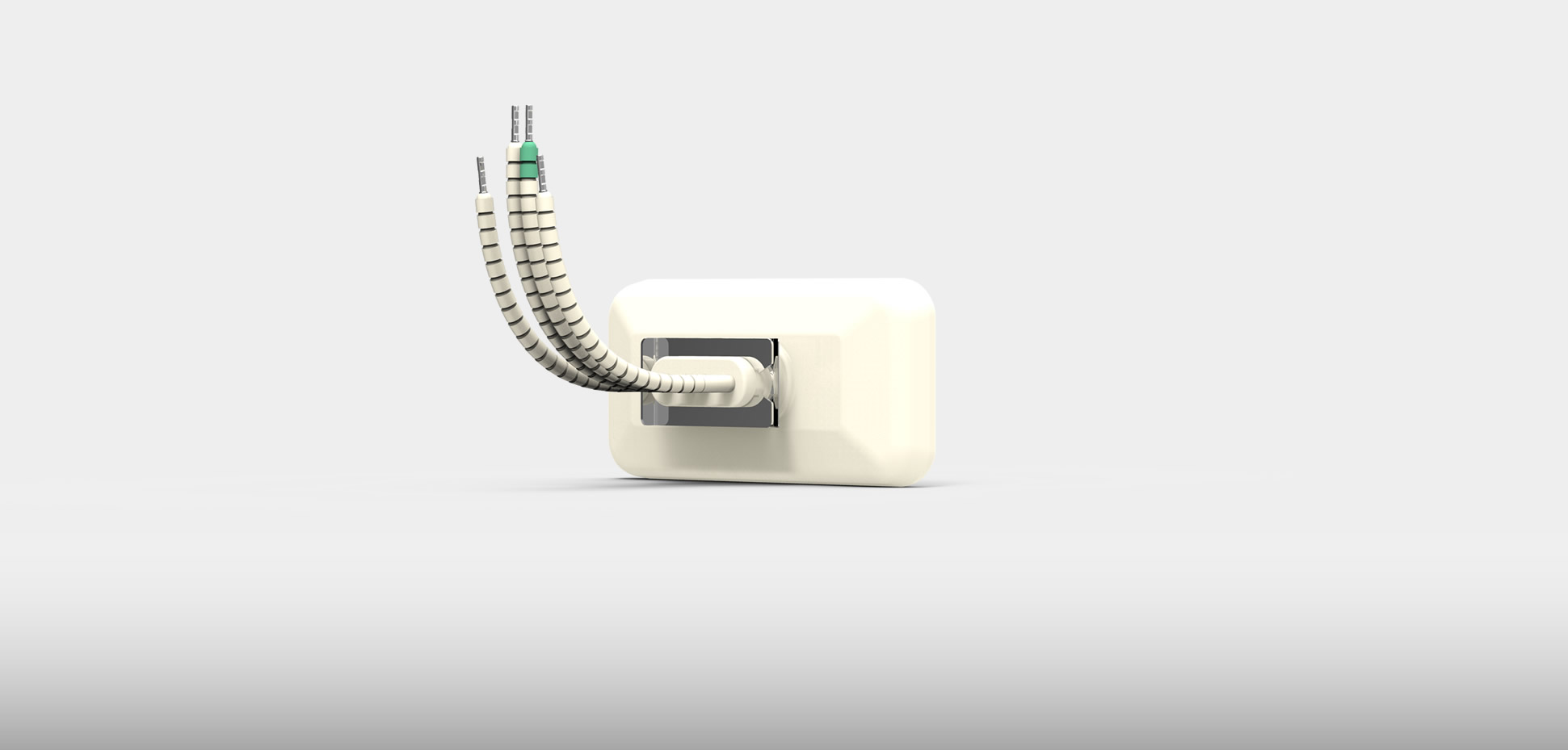

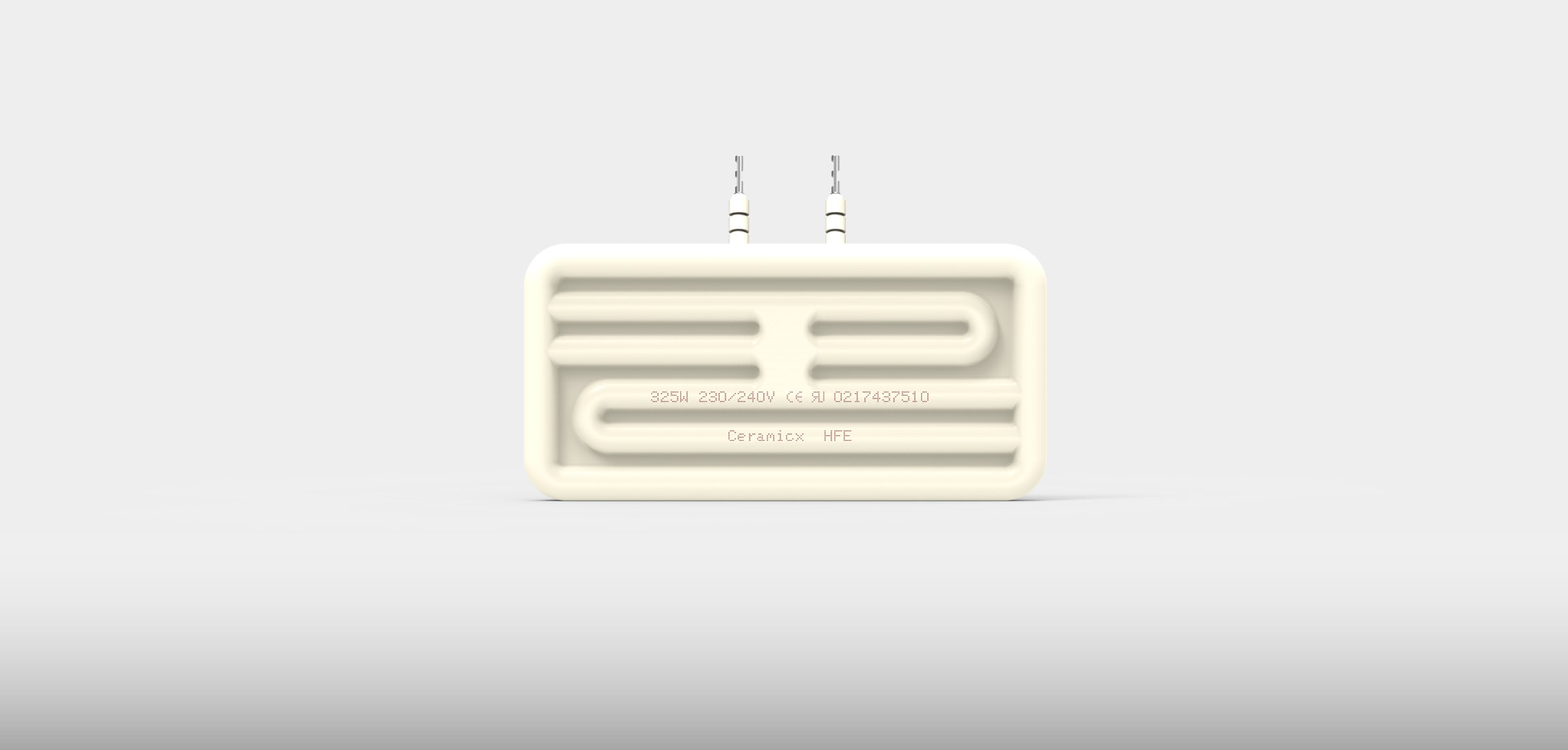

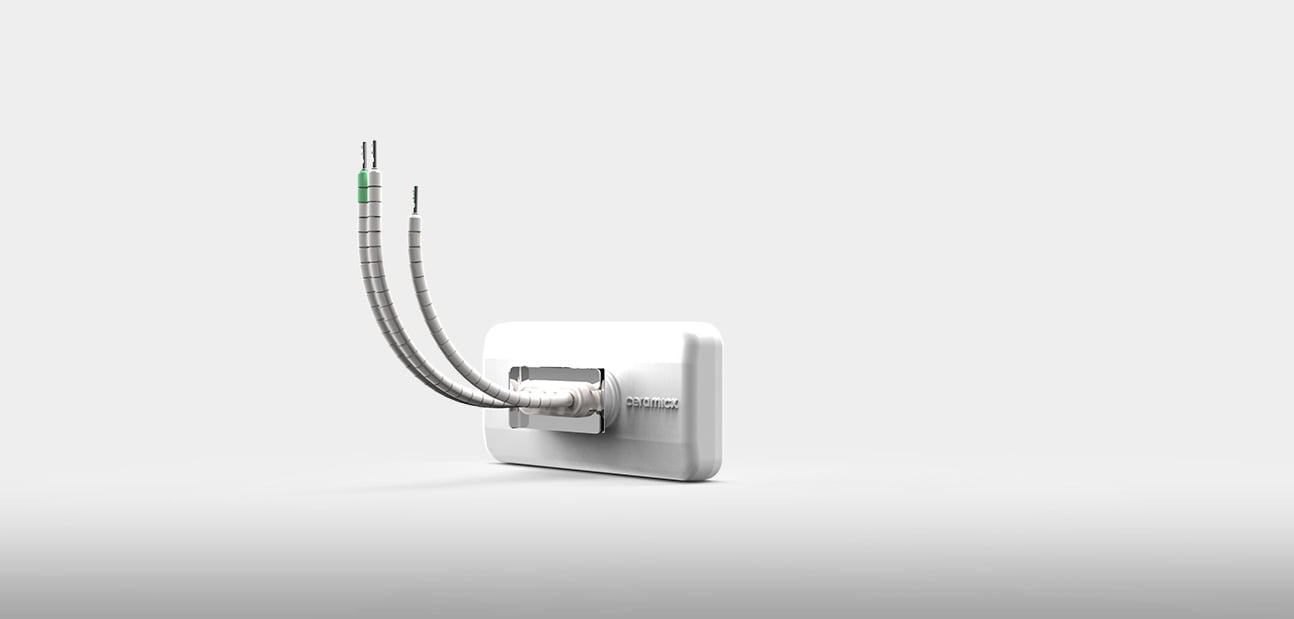

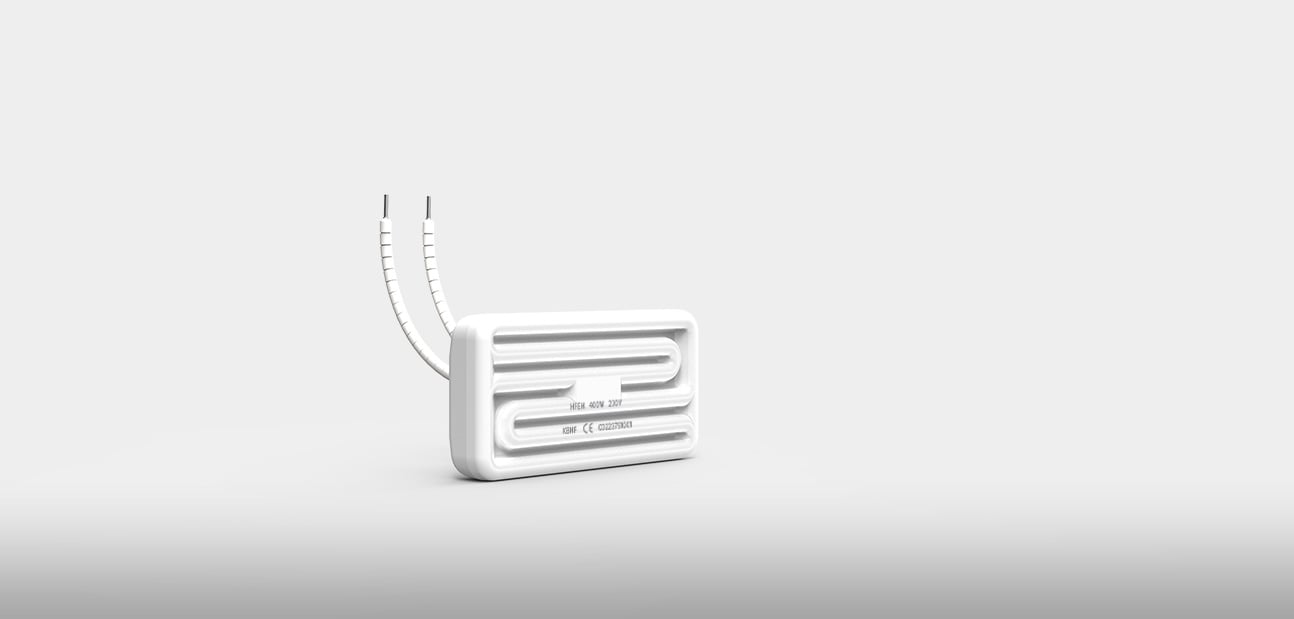

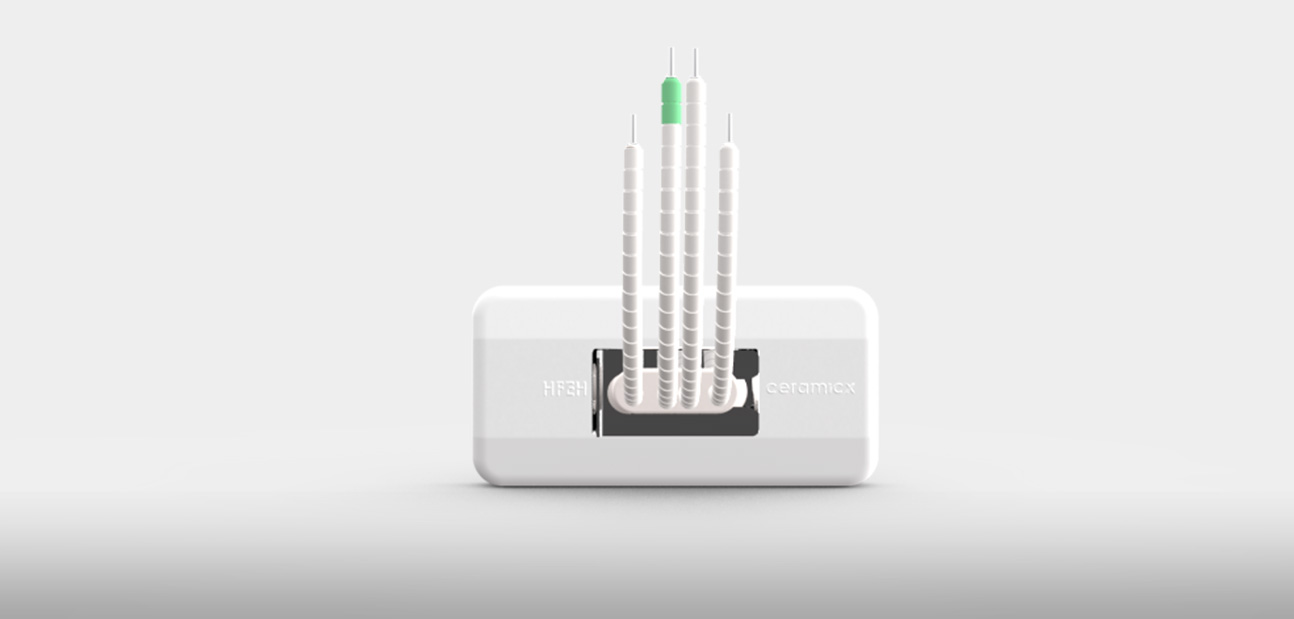

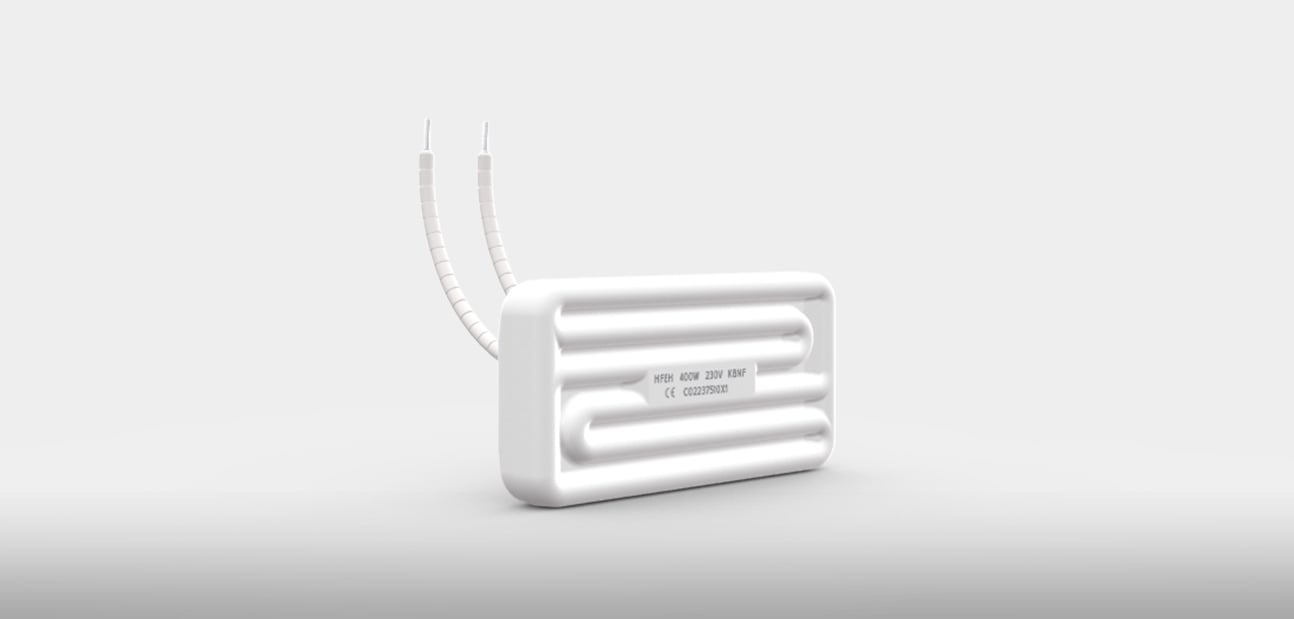

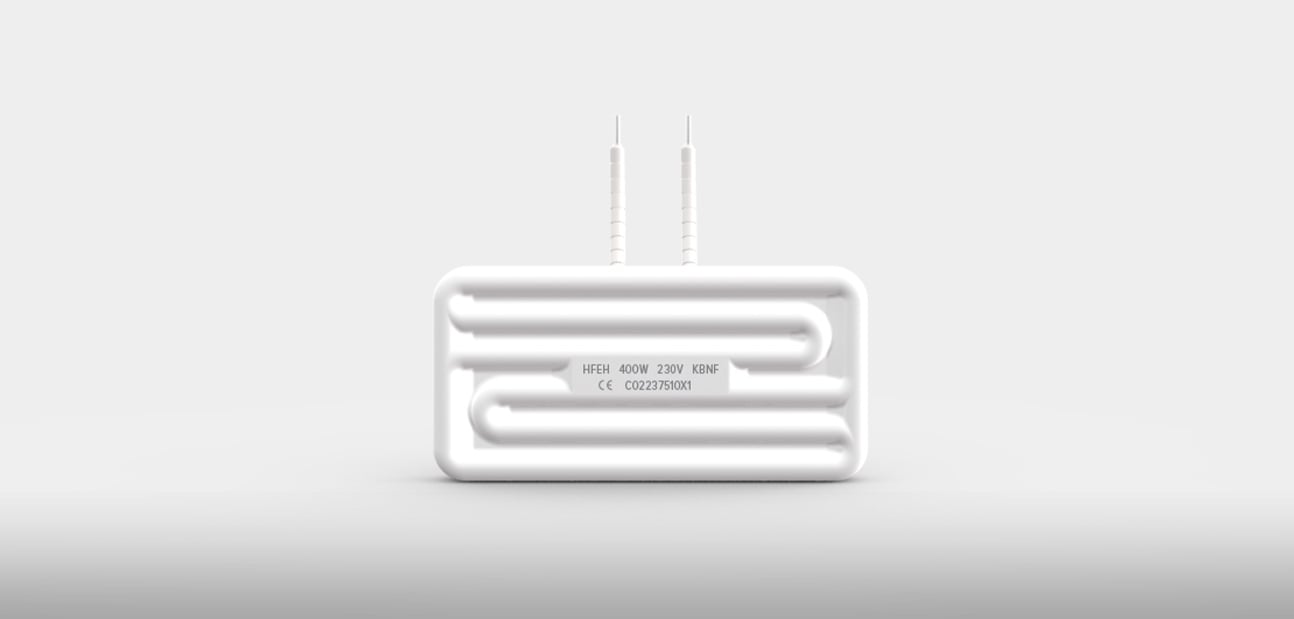

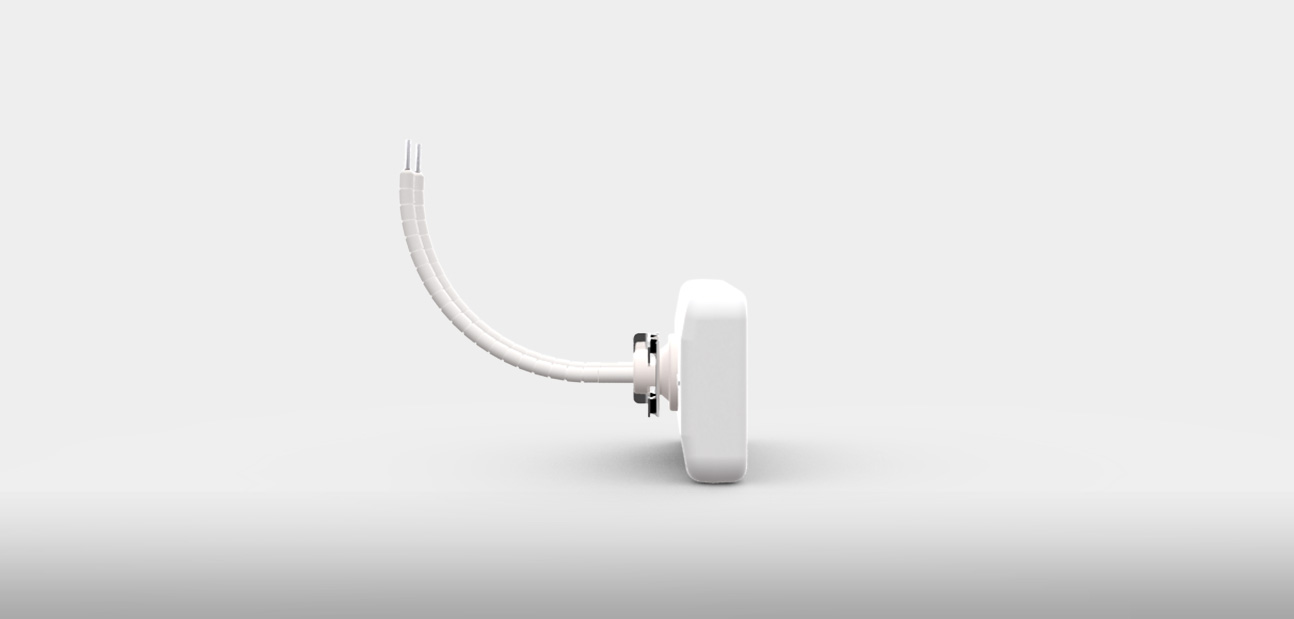

Ceramic Half Flat Infrared Heating Element Hollow (HFEH)

An industry-standard ceramic infrared heater (125 – 400W), our ceramic half flat hollow heater element is designed for long-lasting energy-efficiency in industrial, commercial and domestic applications where a high surface temperature is needed.

Available Wattage: 125 – 400W

Size: 122 x 60 x 37.5mm

Average weight: 150g

Iron-chrome aluminium resistance wire

Heater Voltage: 230V standard

Other Variations: voltages, wattages, lead length and terminations available on request

Useful wavelength range: 2-10 microns

Average Operating Life: 20,000 hrs depending on conditions

Recommended radiation distance from heater is 100 mm to 200 mm

Minimum recommended spacing between elements: 5mm

Supplied with 120mm ceramic beaded power leads

Technical information

Available Wattage125300400
Mean surface temp (°C)390602710
Max power density (kW/m2)153648
Radiant Watt density at 100mm (W/cm2)0.49

Based on tests of average surface temperature with an infrared thermometer set at an emissivity of 0.95 (element mounted in an aluminised steel reflector, RAS)
