Pillared Half Quartz Element (PHQE)

This product is not available to buy online in your country.
Please contact your local distributor for current price and availability.

Clear

Description

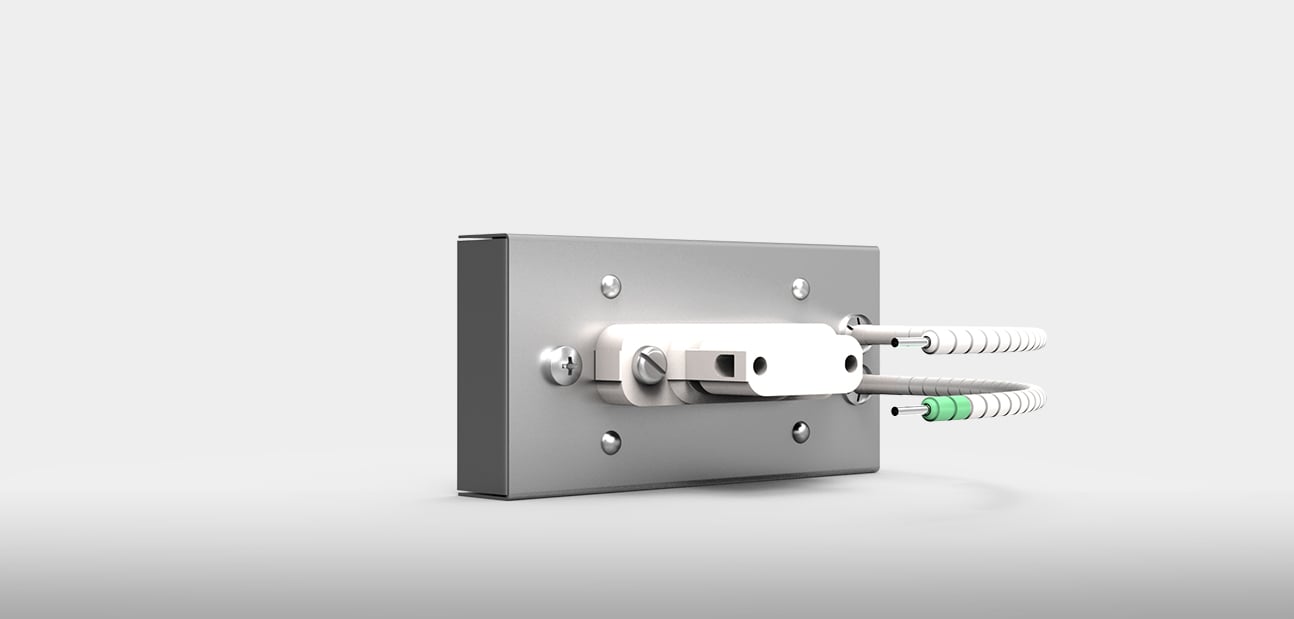

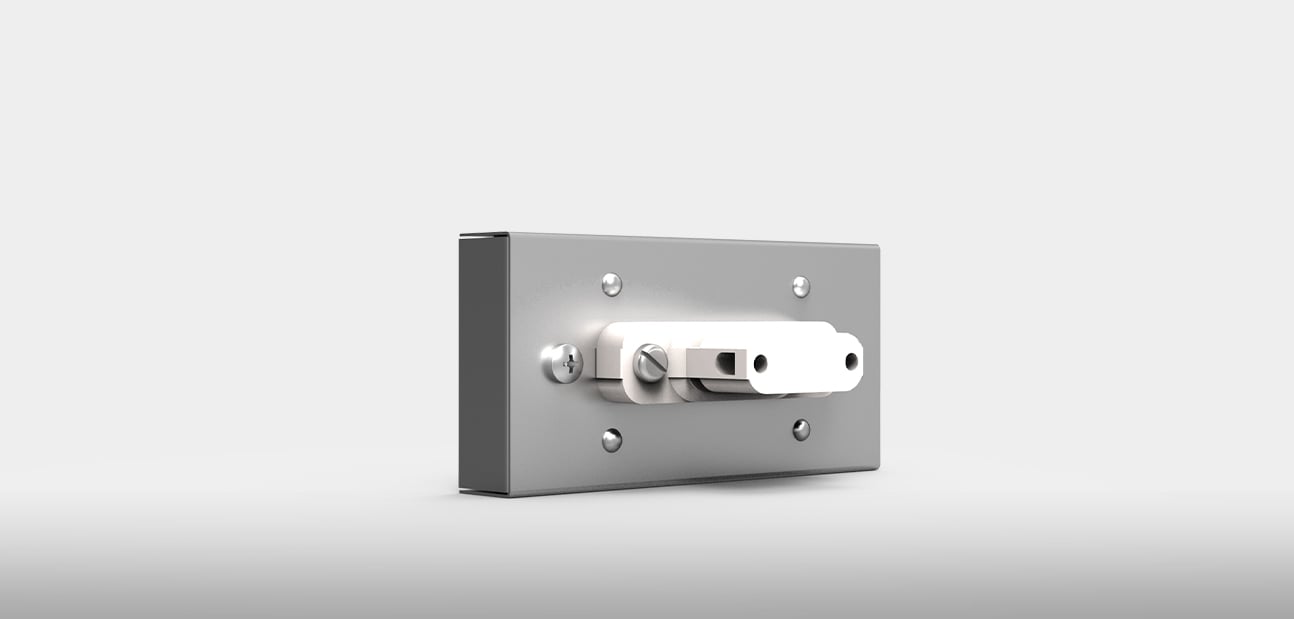

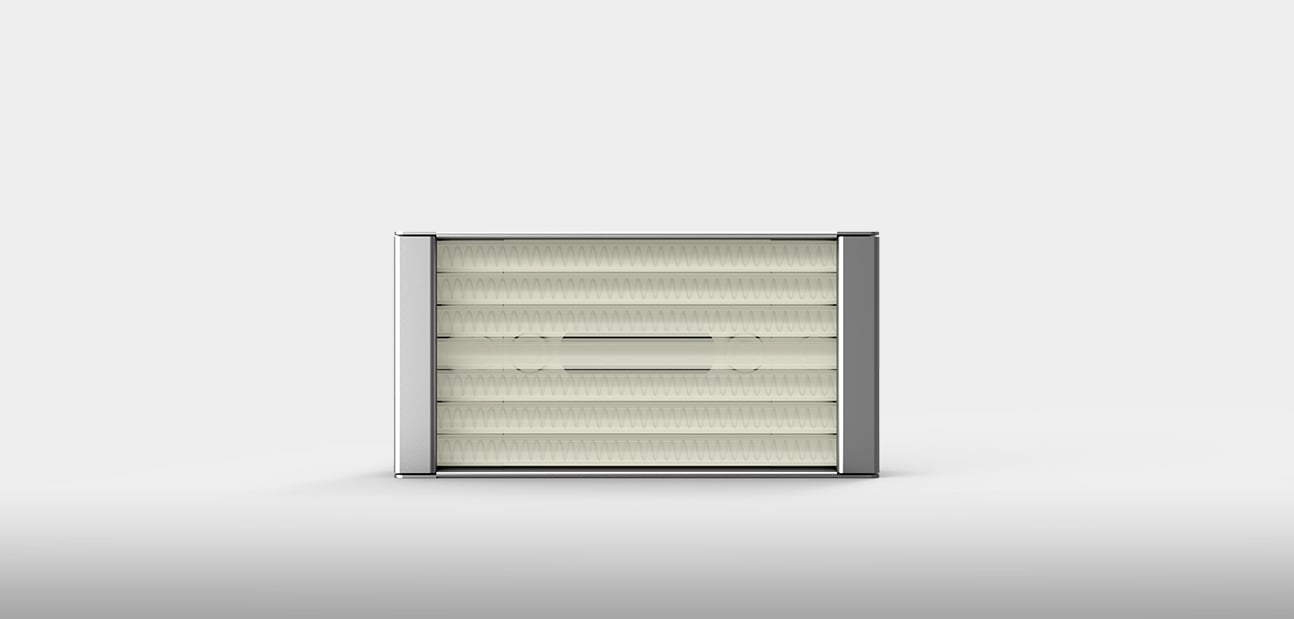

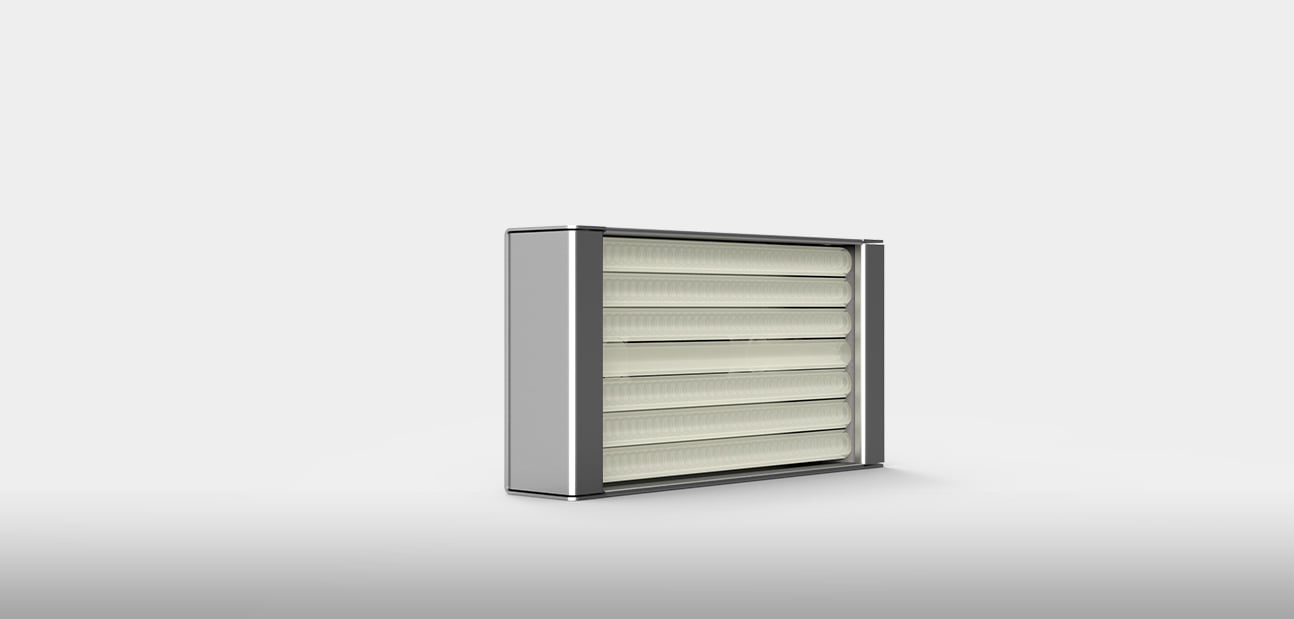

Pillared Half Quartz Infrared Heating Element (PHQE)

A versatile infrared quartz heating element (125 – 500W) with ceramic pillars providing an instant heat response for a variety of industrial process applications. These elements are particularly effective for manufacturing processes where a rapid heater response is required.

Available: 125-500W

Size: 123.5 x 62.5 x 59mm

Useful wavelength range: 1.5 – 8 microns

Average Weight 268g

Iron-chrome aluminium resistance wire

Heater Voltage: 230V standard

Other Variations: voltages, wattages, lead length and terminations available on request

Average Operating Life: 10,000 hrs depending on conditions

Recommended radiation distance from heater is 100 mm to 200 mm

Minimum recommended spacing between elements: 5mm.

Standard Quartz Emitters should be used instead of Pillared Quartz Emitters in situations where there is a lot of movement as the metal studs will deal better with mechanical shock than the Ceramic pillars

Technical information

Available Wattage125W250W325W400W500W
Mean surface temp (°C)593664720772
Max power density (kW/m2)14.428.737.345.957.4

Drawings

Installation Instructions
