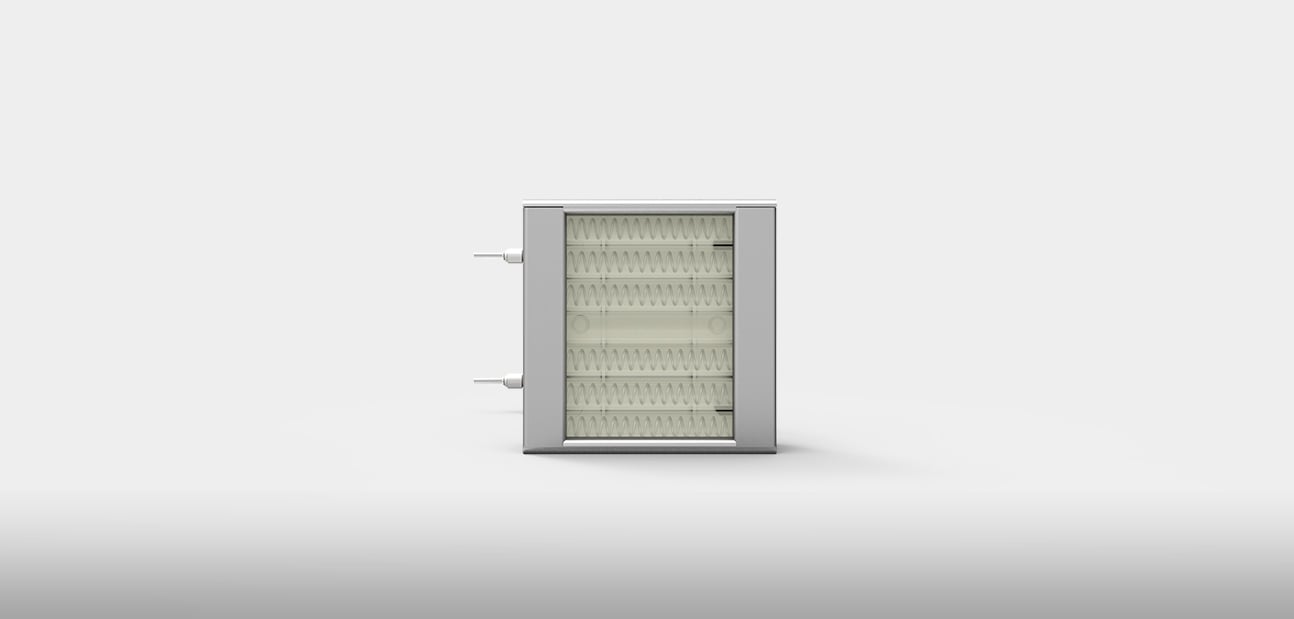

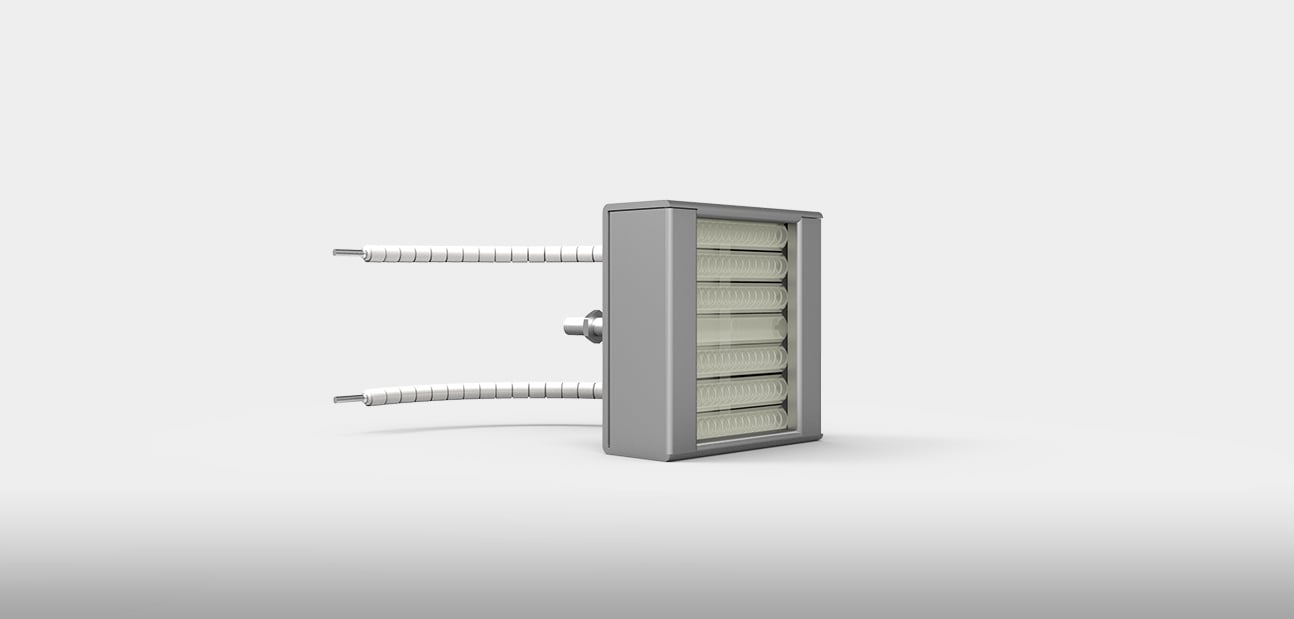

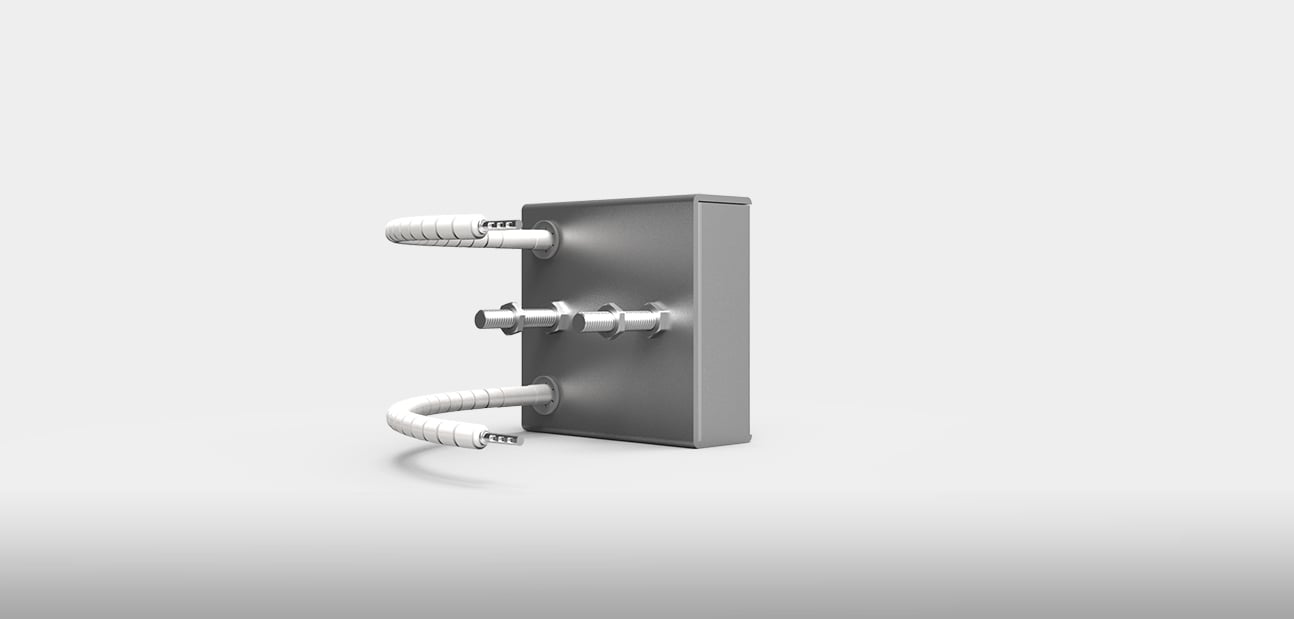

Quarter Quartz Element (QQE)


Quarter Quartz Infrared Heating Element (QQE)

A versatile infrared quartz heating element (150 – 250W) providing an instant heat response for a variety of industrial process applications. These elements are particularly effective for manufacturing processes where a rapid heater response is required.

Available Wattage: 150 – 250W

Size: 62.5 x 62.5 x 22.5mm

Useful wavelength range: 1.5 – 8 microns

Average weight: 139g

Heater Voltage: 230V standard

Other Variations: voltages, wattages, lead length and terminations available on request

Average Operating Life: 10,000 hrs depending on conditions

Iron-chrome aluminium resistance wire

Recommended radiation distance from heater is 100 mm to 200 mm

Minimum recommended spacing between elements: 5mm.

Supplied with 100mm ceramic beaded power leads

Ensure temperature of the aluminium clad steel body does not exceed 500°C (932°F).

Technical information

Available Wattage150W250W
Mean surface temp (°C)642772
Max power density (kW/m2)32.954.8
Radiant Watt density at 100mm W/cm21.14

Based on tests of average surface temperature with an infrared thermometer set at an emissivity of 0.95 (element mounted in an aluminised steel reflector, RAS)


Installation Instructions
