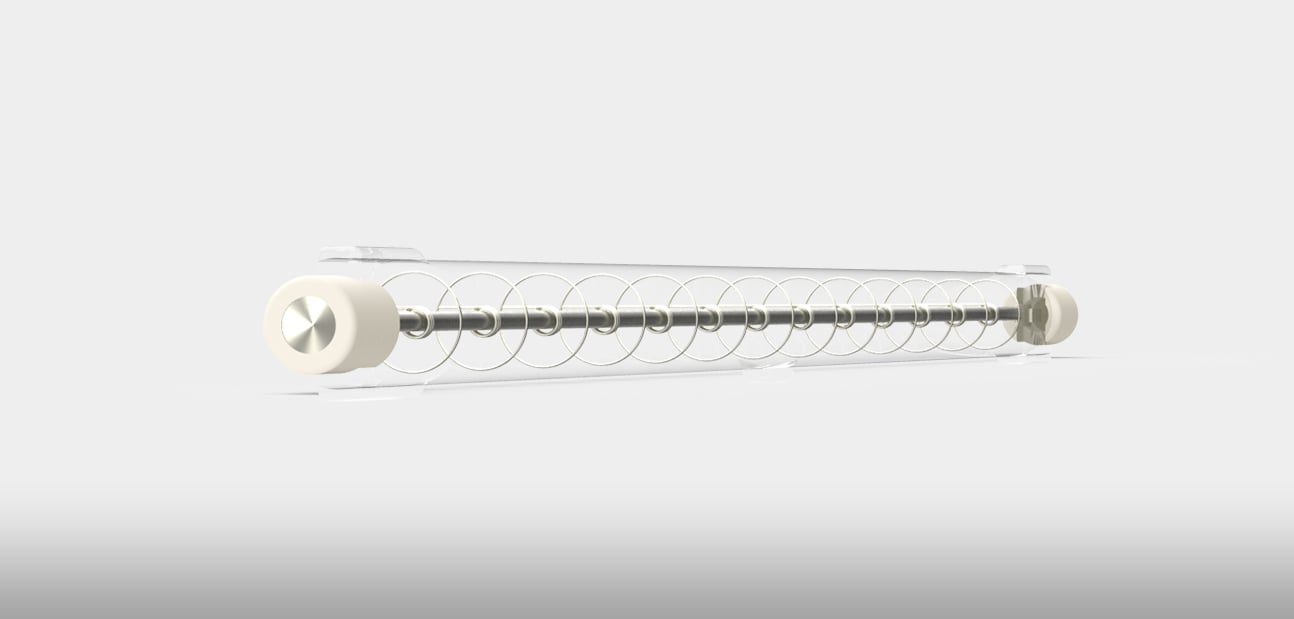

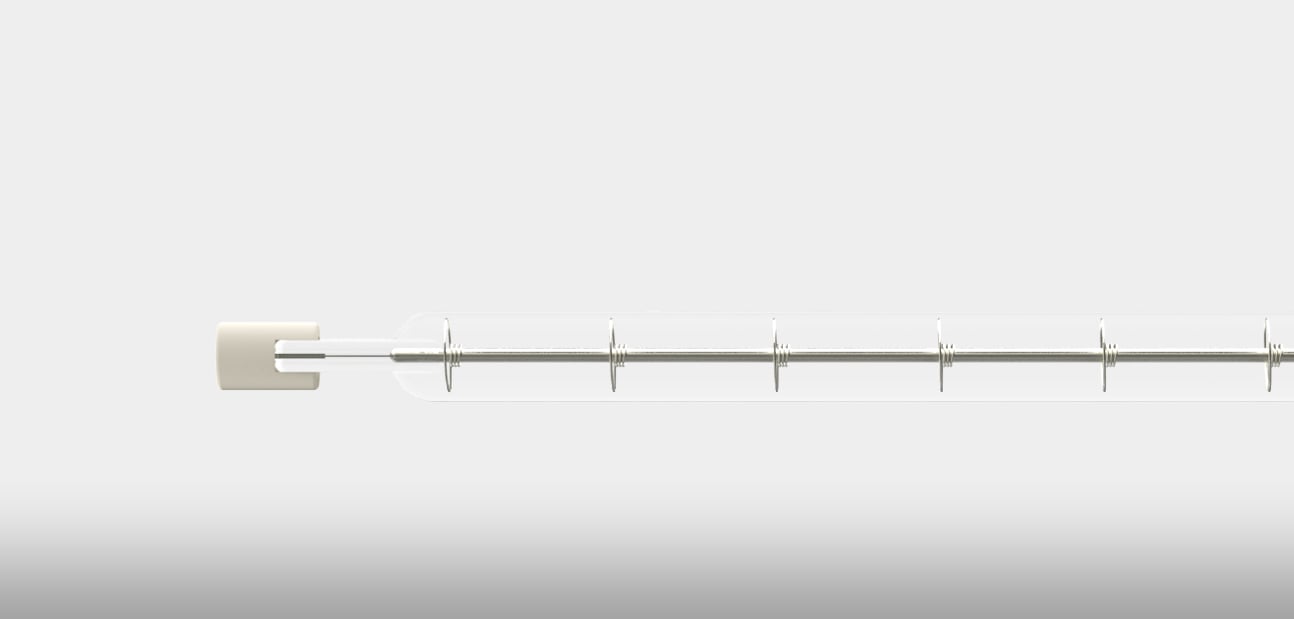

Quartz Halogen Medium

Description

Available: 1000W / 240V

Size: 10 x 277 mm

Short wave emitters standard features

These heaters are filled with halogen gas to allow the supported tungsten filament to reach temperatures as high as 2600°C (4712°F).

With peak wavelength emissions of approximately 1 micron, they are extremely penetrative and allow rapid on/off cycles.

Standard Products: R7s termination and 10 mm diameter glass.

Please note: other configurations available on request.

For enquiries about these elements, please complete and submit the Tube Enquiry Form.

Technical information

ModelWattageVoltageMax. Coil Temp.Overall lengthHeated Length
QHM1000W240V2410°C (4370°F)277mm225mm

Drawings

Installation, handling & safety

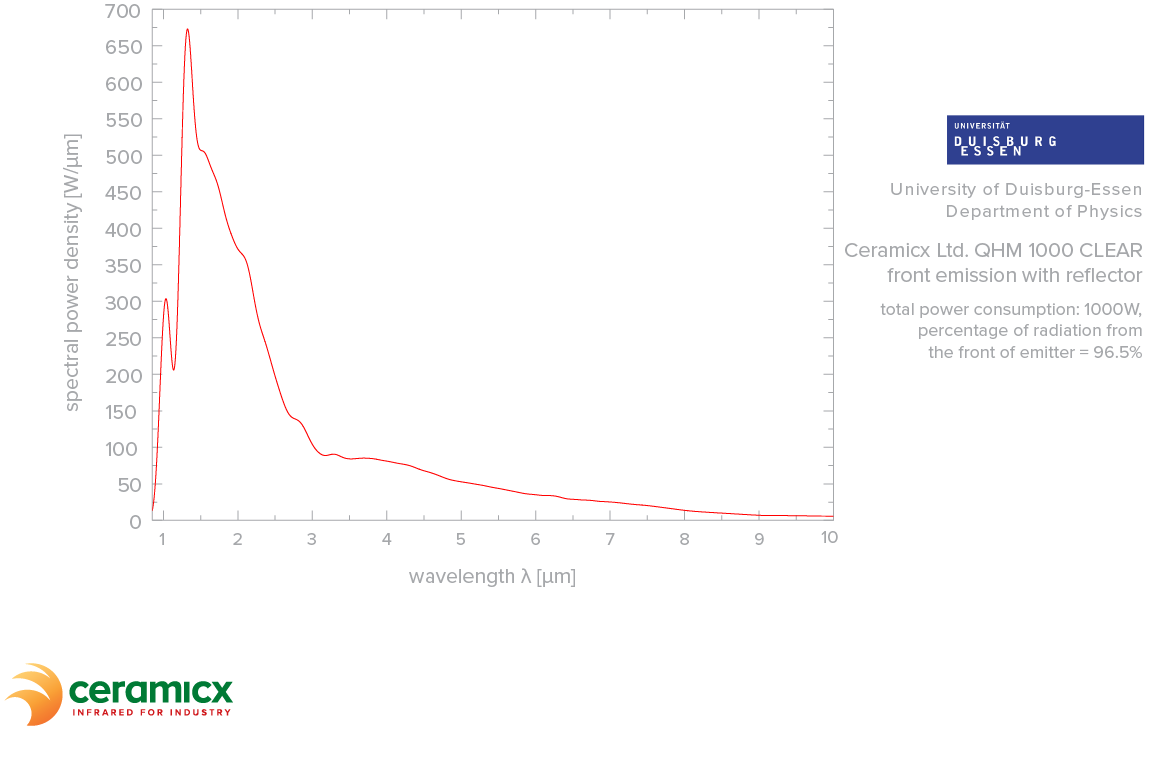

Spectral Analysis

Ceramicx has been working with the University of Duisburg in Essen Germany for a number of years. The data produced has allowed Ceramicx to evolve and develop our product further as well as making more information available to help customers make a better decision when applying infrared heaters and ceramic heaters to high-tech applications.
