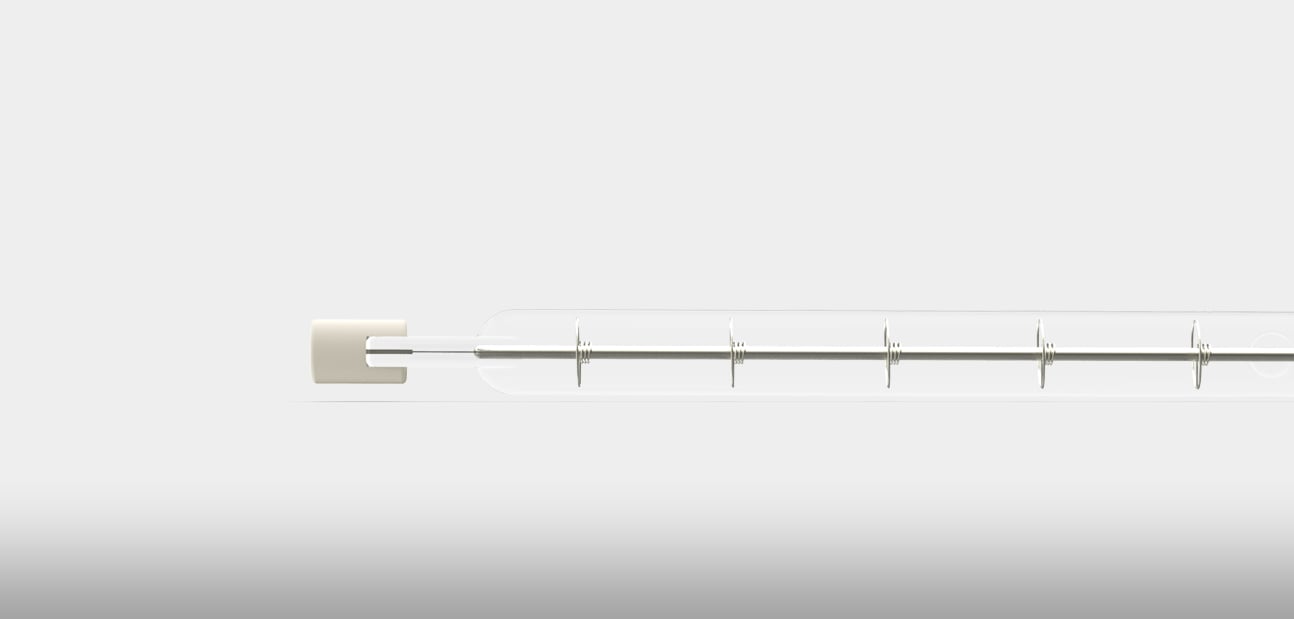

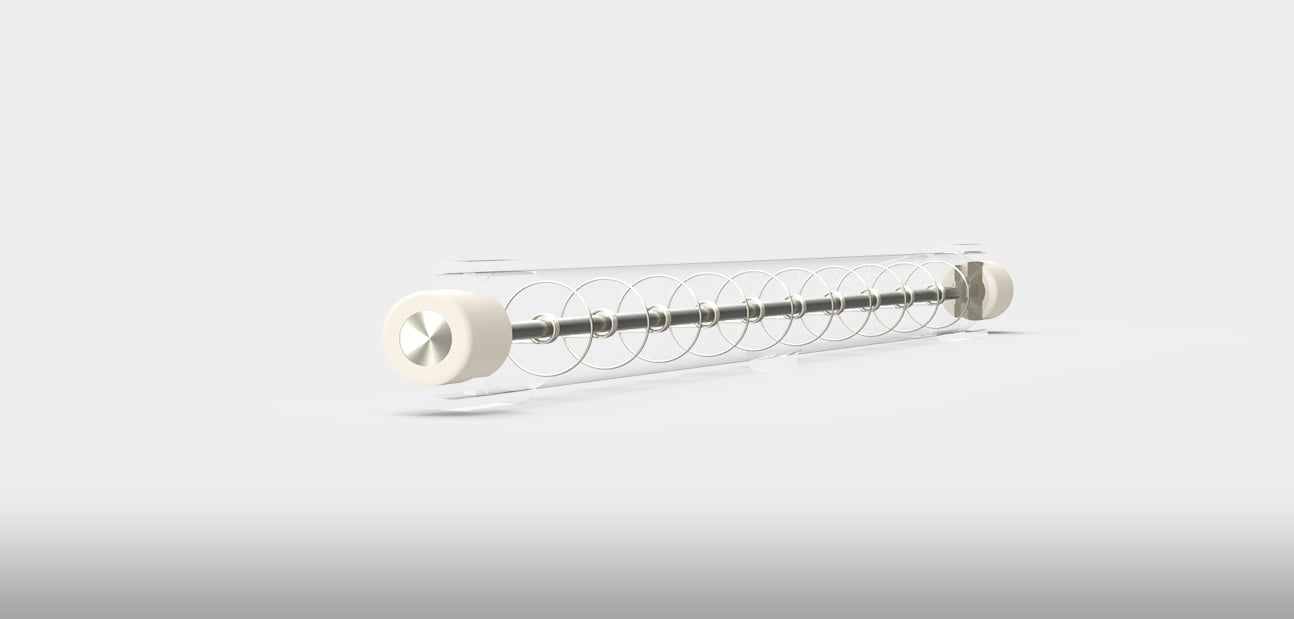

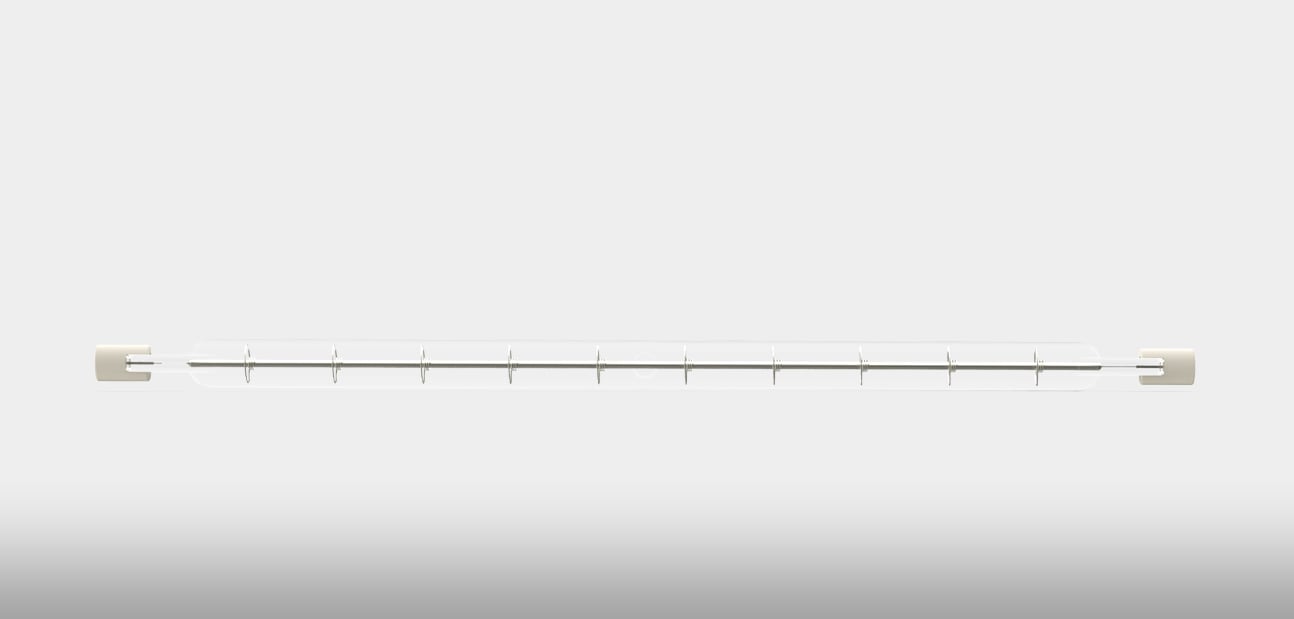

Quartz Halogen Short

This product is not available to buy online in your country.
Please contact your local distributor for current price and availability.

Clear

Description

Available Wattage: 750W / 240V

Size: 10 x 224mm

Short wave emitters standard features

These heaters are filled with halogen gas to allow the supported tungsten filament to reach temperatures as high as 2600°C (4712°F).

With peak wavelength emissions of approximately 1 micron, they are extremely penetrative and allow rapid on/off cycles.

Standard Products: R7s termination and 10 mm diameter glass.

Please note: other configurations available on request.

For enquiries about these elements, please download, complete and return the Tube Enquiry Form.

ModelWattageVoltageMax. Coil Temp.Overall lengthHeated Length
QHS750W240V2410°C (4370°F)224mm170mm

Drawings

Installation, handling & safety
