Carbon Fiber Heating System For Aerospace
As an independent, national centre for the world-class design and manufacture of composites, our client’s testing production capabilities were already meeting multi-sector demands. With the growth of dry fabric infusion in the aerospace industry, they now needed an innovative solution to increase composite testing, offer significant savings, and set new industry benchmarks.
The Challenge
Our client has brought together both companies and academics to develop new technologies for the design and manufacture of high-quality composite products. With state of the art facilities, they’re leading the coordination of a network of regional centres of excellence in the UK composites industry.
In the industry, there has been a move away from traditional prepreg and autoclaves, to dry fabric infusion. An essential step in infusing dry fabrics is ‘pre-forming’ – a process using heat to activate a binder in the dry fabric to produce a semi-structural ‘pre-form’. This method has seen increasing growth in aerospace structures, specifically in the manufacture of stringers, the structural supports within an aircraft wing that prevents buckling and bending under compression.
The Search For Solutions
As an industry leader in the design and manufacture of infrared heating systems, Ceramicx have developed an extensive knowledge of the aerospace industry, with the necessary experience of heating composite products, including the curing of thermoset resins.
When undertaking a project of this nature, understanding the specific requirements of the process is key. Geometry, nature of the control, anticipated processing speeds, and budget all play a big part in the formation of a bespoke solution.
With infrared offering consistent and notable advantages over traditional convection ovens, we demonstrated how infrared can offer significant savings in the heating of stringers during the ‘pre-forming’ process, and how a bespoke control and system design would prove crucial to our client’s success.
Technical Information
Power: | 56.8 kW |
Heaters: | Custom Quartz Halogen tubes (400W x 20 pcs, 850W x 24 pcs) |
Zones: | 6 |
Electrical Circuits | 2 per zone |
Pyrometer | 6 x pyrometer CT -SF 15, one per zone |
The Implementation

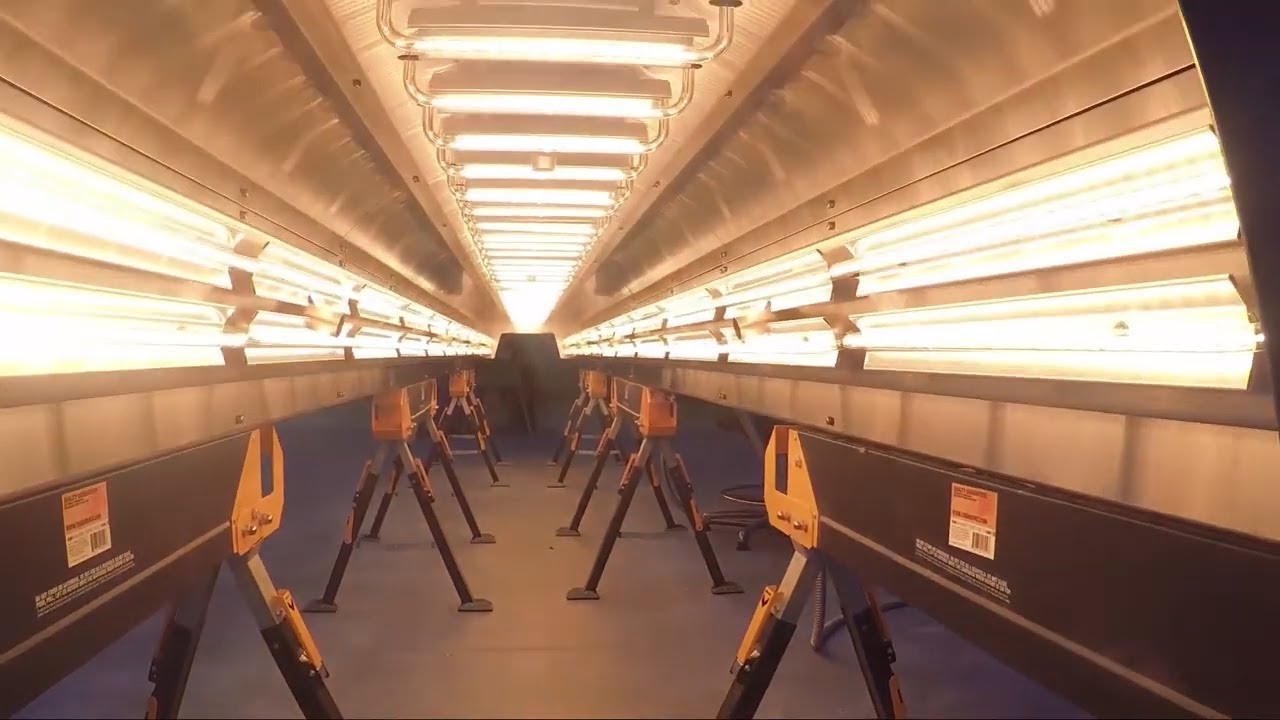

Following a process of further research and development, our designs and plans were approved. We then custom-built the IR oven and its own 12-zone heat control system–optimising the oven for efficiency and appropriate processing parameters–all to the client’s specifications. The trapezoid shape created by the reflectors matches the composite pre form shape.
Fast-response, quartz halogen heaters were chosen for their emitter type due to the extensive data generated by Ceramicx with them for heating carbon composite materials. Their geometric and relative arrangement was based on extensive R&D of heating composites to give the best performance. By easily selecting and deselecting relevant zones, the oven provides adjustability for different stringer shapes and lengths.
The Implementation
Following a process of further research and development, our designs and plans were approved. We then custom-built the IR oven and its own 12-zone heat control system–optimising the oven for efficiency and appropriate processing parameters–all to the client’s specifications. The trapezoid shape created by the reflectors matches the composite pre form shape.
Fast-response, quartz halogen heaters were chosen for their emitter type due to the extensive data generated by Ceramicx with them for heating carbon composite materials. Their geometric and relative arrangement was based on extensive R&D of heating composites to give the best performance. By easily selecting and deselecting relevant zones, the oven provides adjustability for different stringer shapes and lengths.
