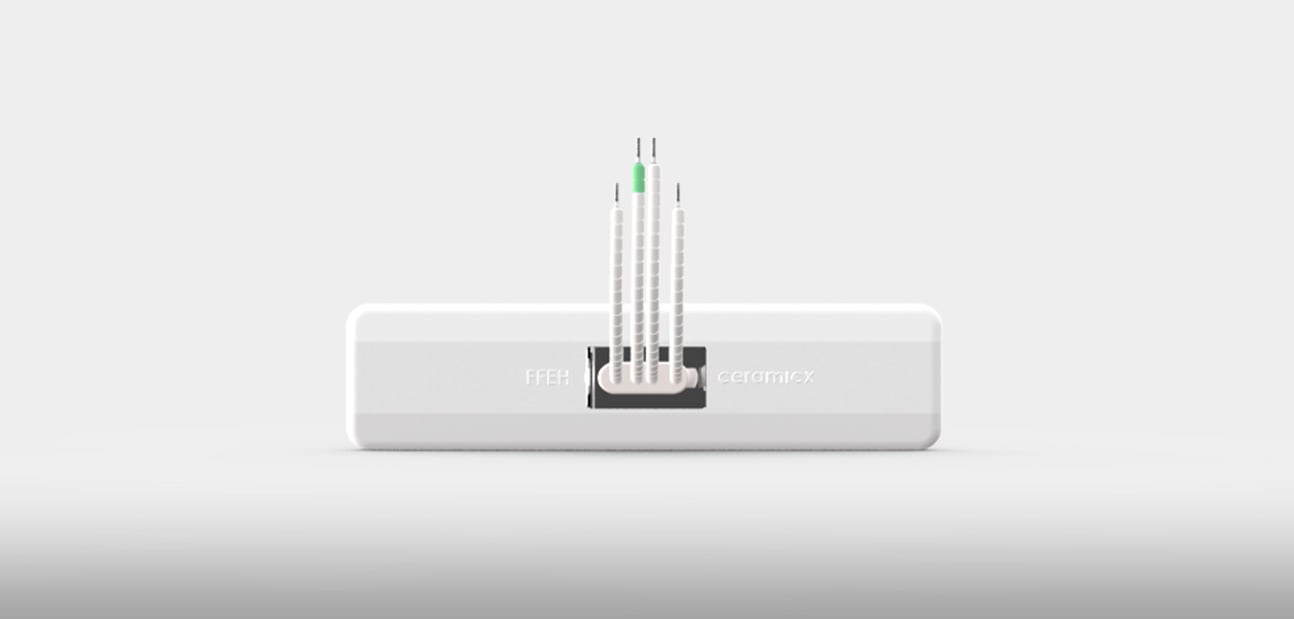

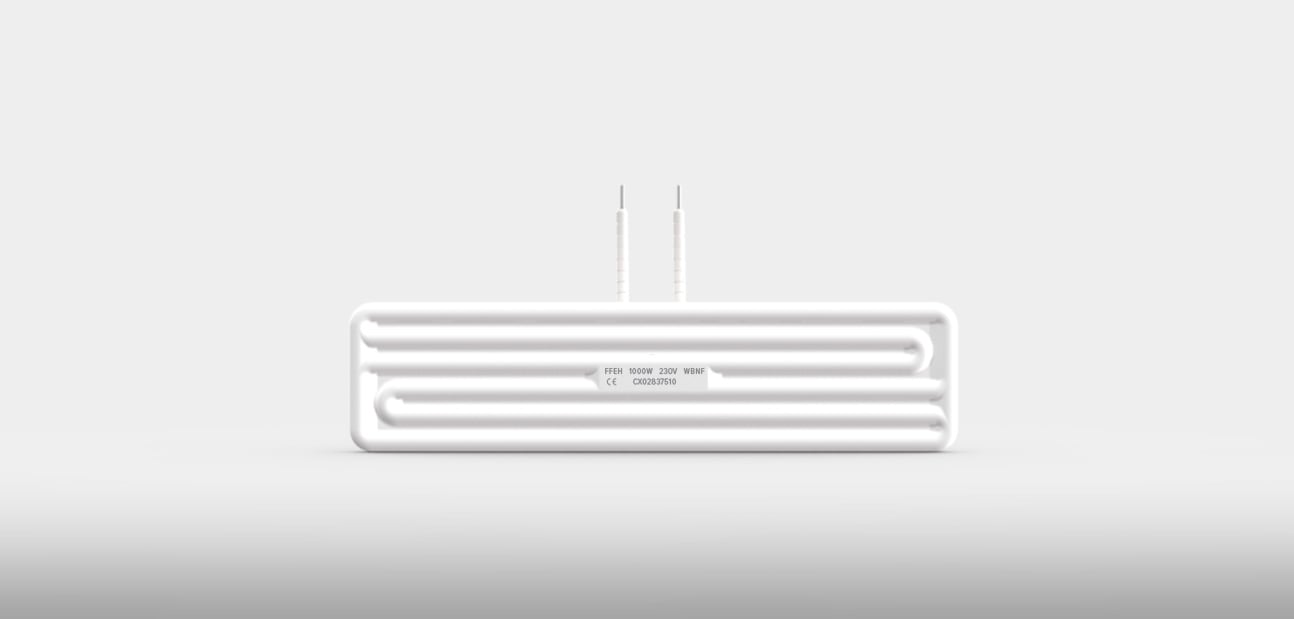

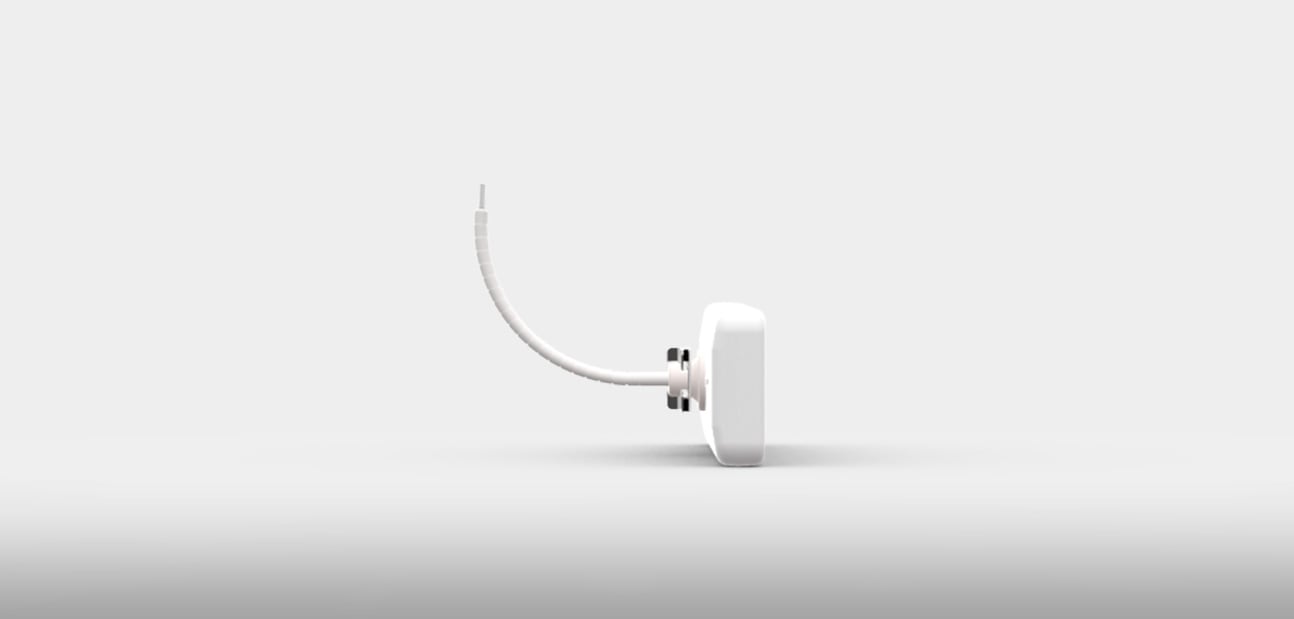

Full Flat Element Hollow (FFEH)

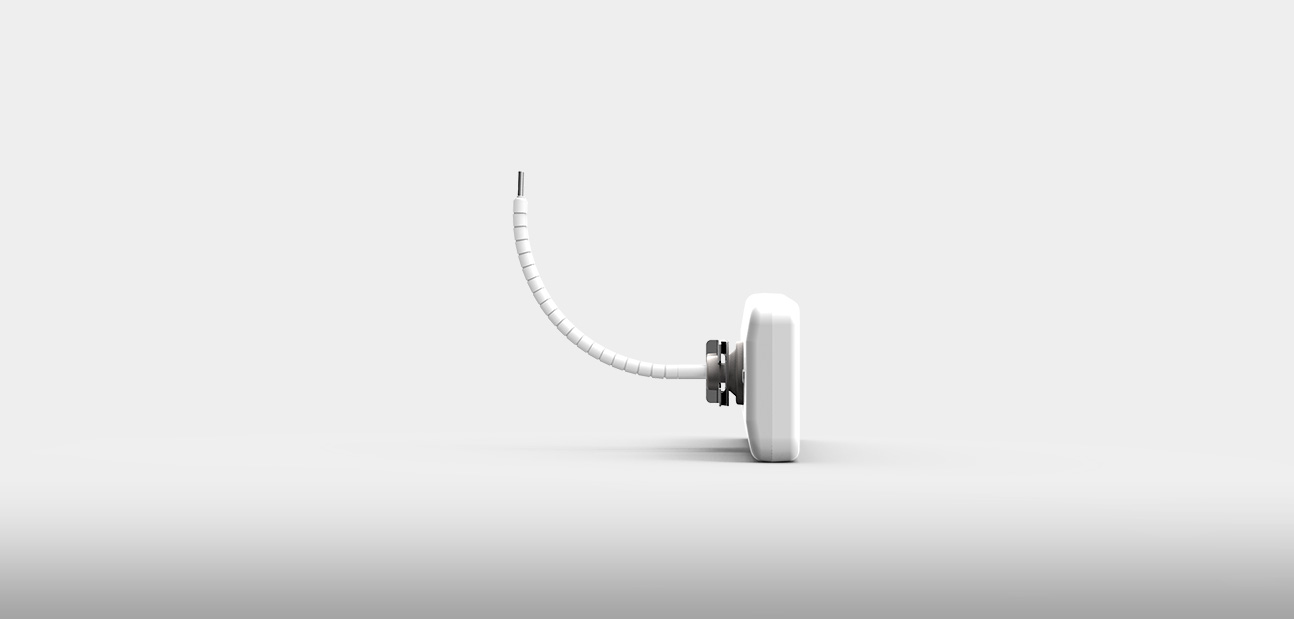

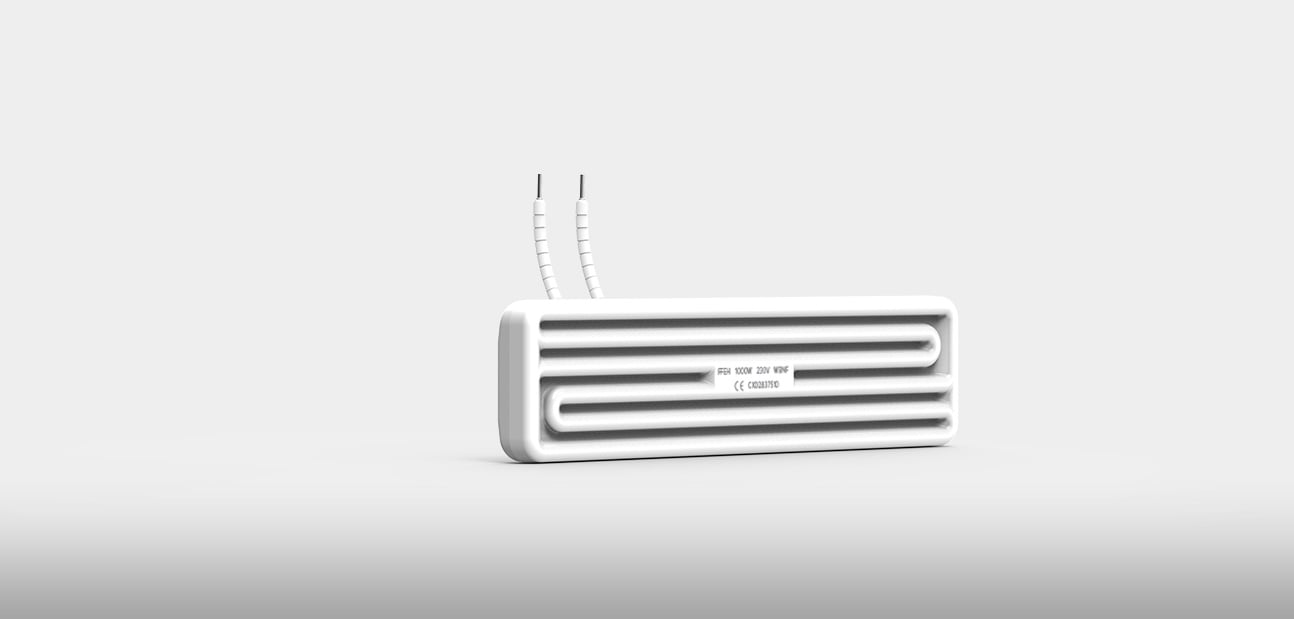

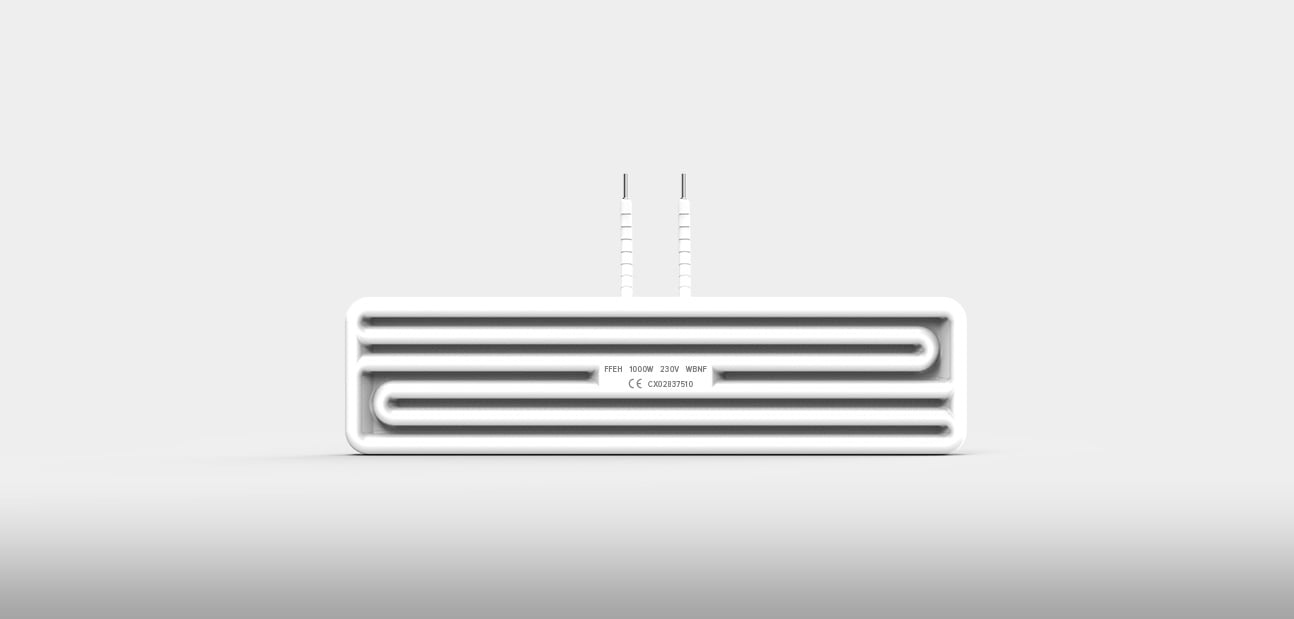

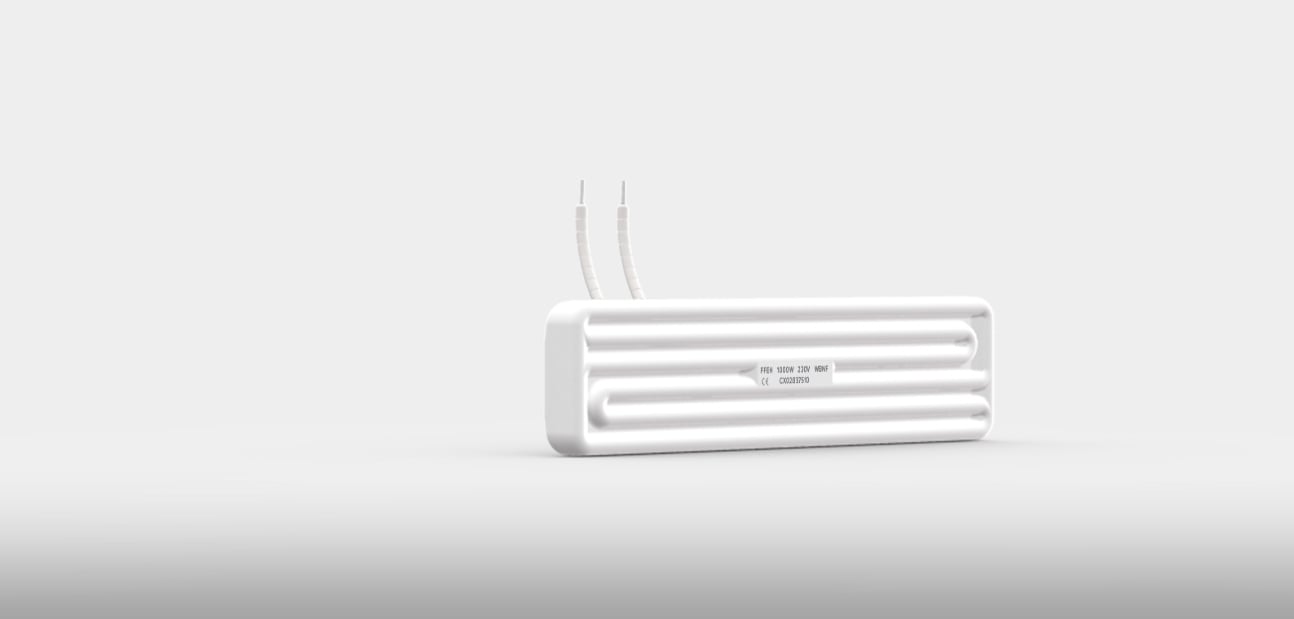

Ceramic Full Flat Infrared Heating Element Hollow (FFEH)

An industry-standard ceramic infrared heater (250 – 800W), our ceramic full flat hollow heater element is designed for long-lasting energy-efficiency in industrial, commercial and domestic applications where a high surface temperature is needed.

Available Wattage: 250 – 800W

Size: 245 x 60 x 37.5mm

Average weight: 254g

Iron-chrome aluminium resistance wire

Heater Voltage: 230V standard

Other Variations: voltages, wattages, lead length and terminations available on request

Useful wavelength range: 2-10 microns

Average Operating Life: 20,000 hrs depending on conditions

Recommended radiation distance from heater is 100 mm to 200 mm

Minimum recommended spacing between elements: 5mm

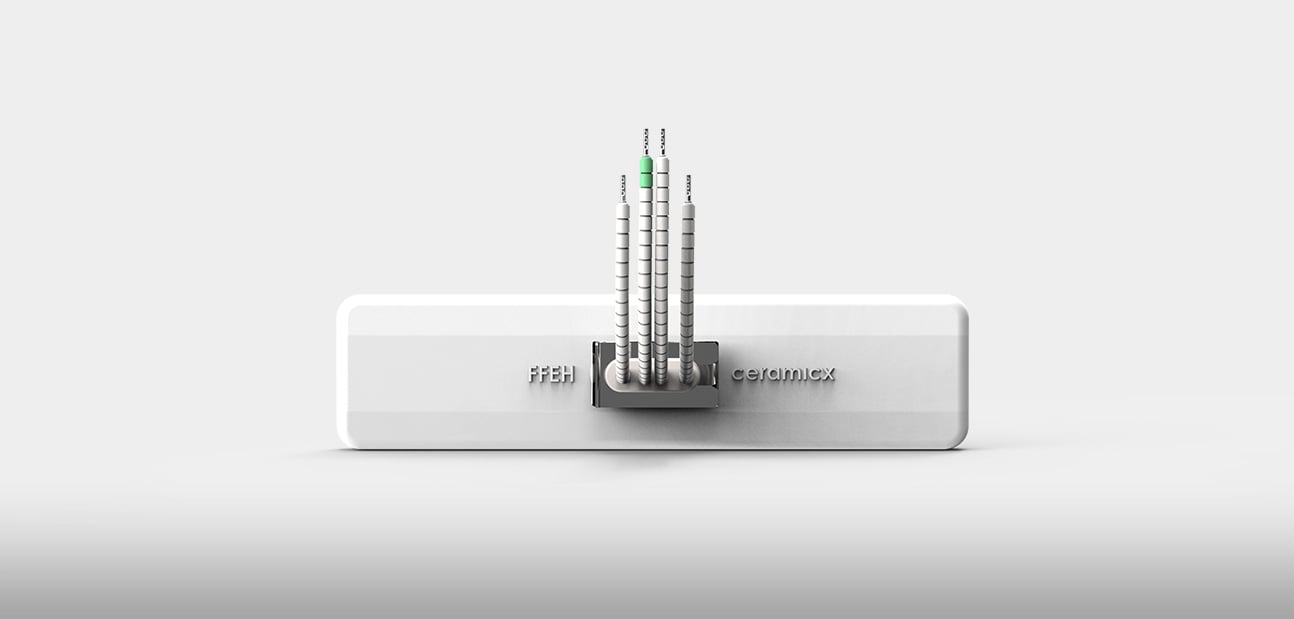

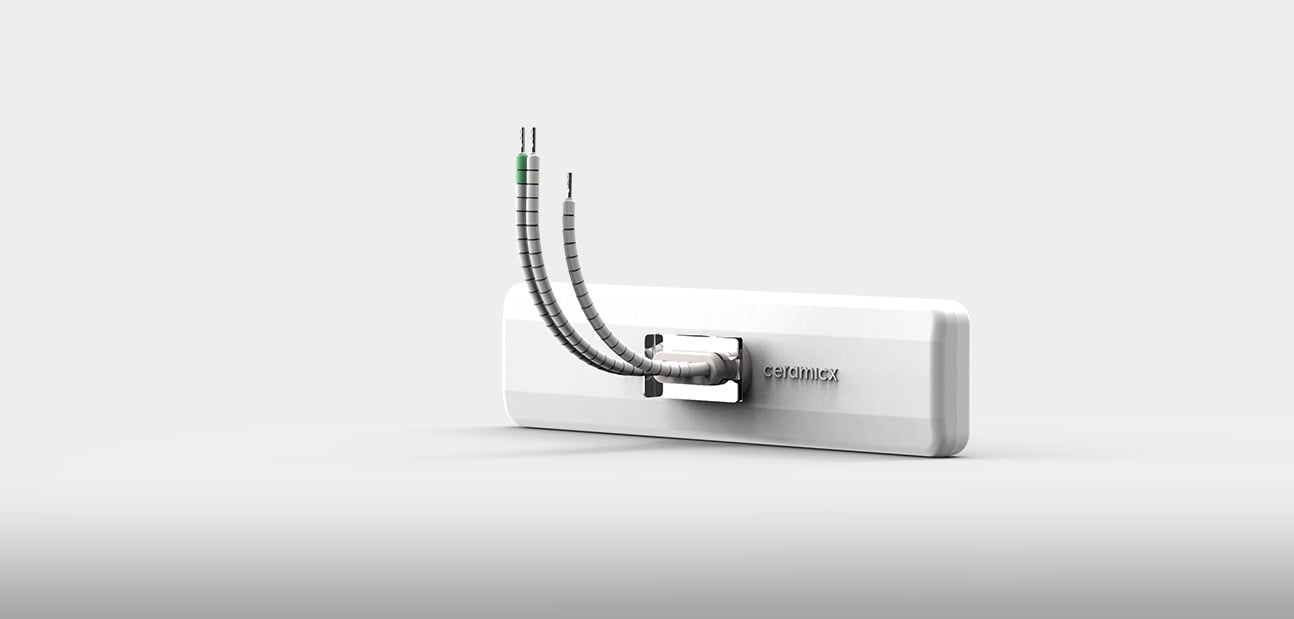

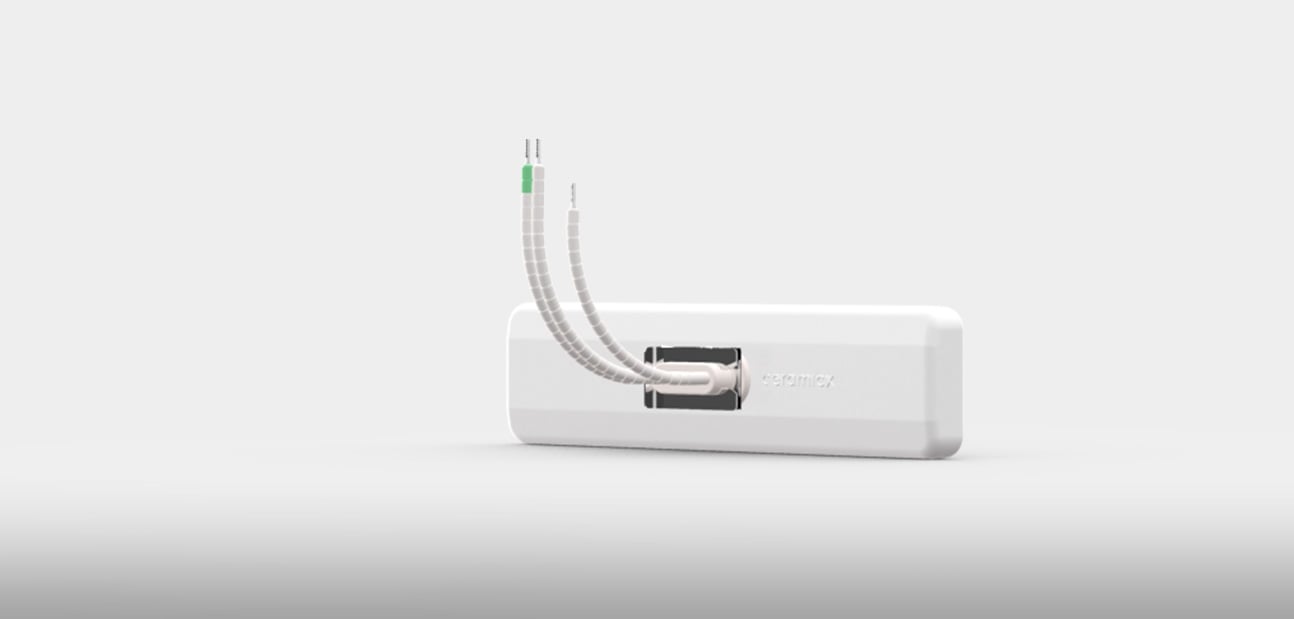

Supplied with 120mm ceramic beaded power leads

Technical information

Available Wattage250400600800
Mean surface temp (°C)390497602710
Max power density (kW/m2)15243648
Radiant Watt density at 100mm (W/cm2)0.250.440.73

Based on tests of average surface temperature with an infrared thermometer set at an emissivity of 0.95 (element mounted in an aluminised steel reflector, RAS)


Installation Instructions

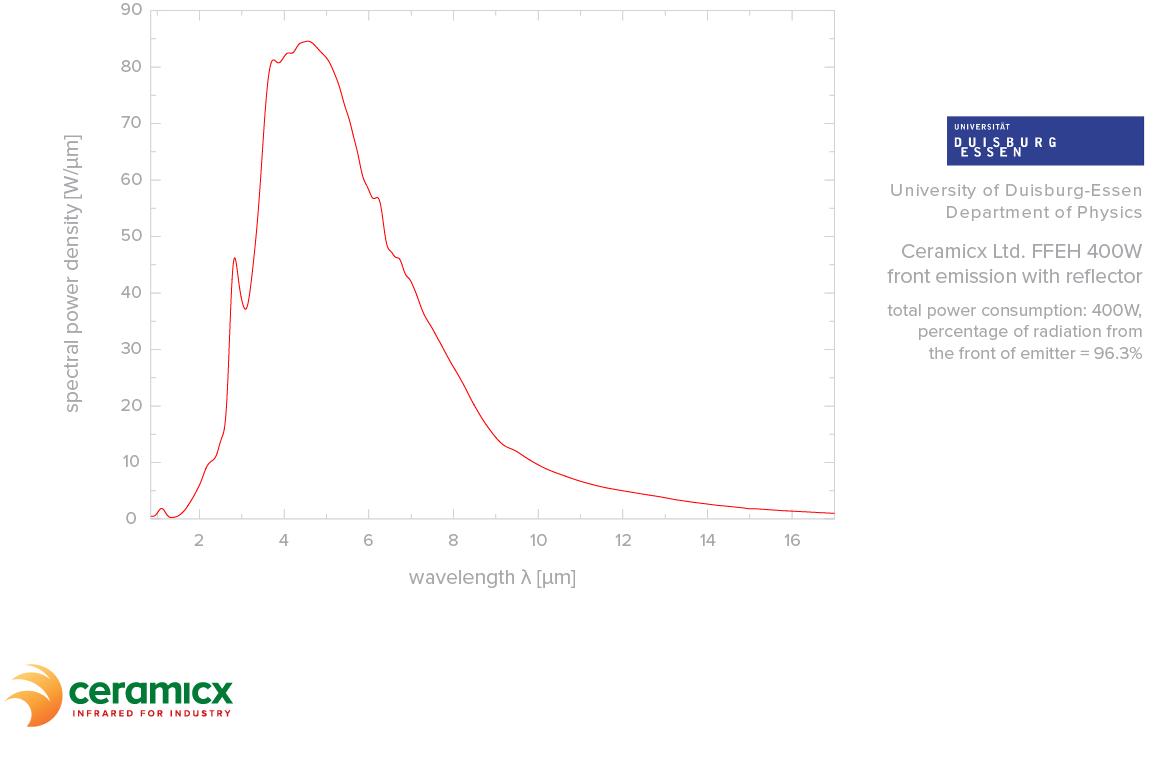

Spectral Analysis

Ceramicx has been working with the University of Duisburg in Essen Germany for a number of years. The data produced has allowed Ceramicx to evolve and develop our product further as well as making more information available to help customers make a better decision when applying infrared heaters and ceramic heaters to high-tech applications.
