Square Flat Element Hollow (SFEH)

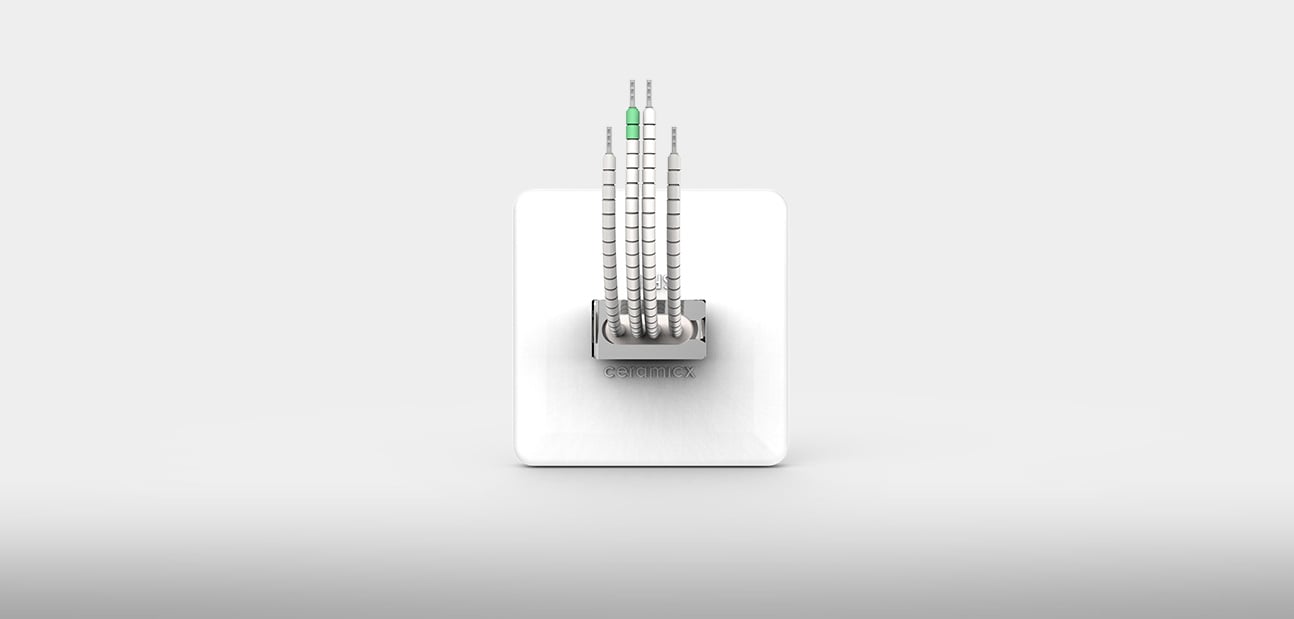

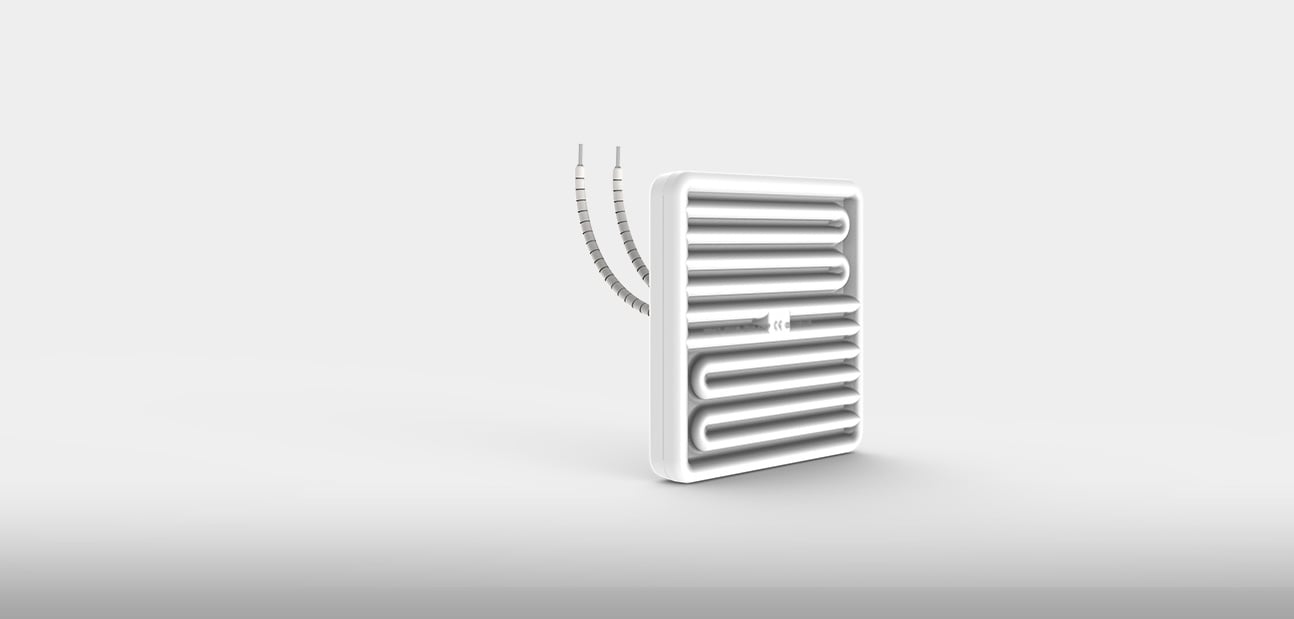

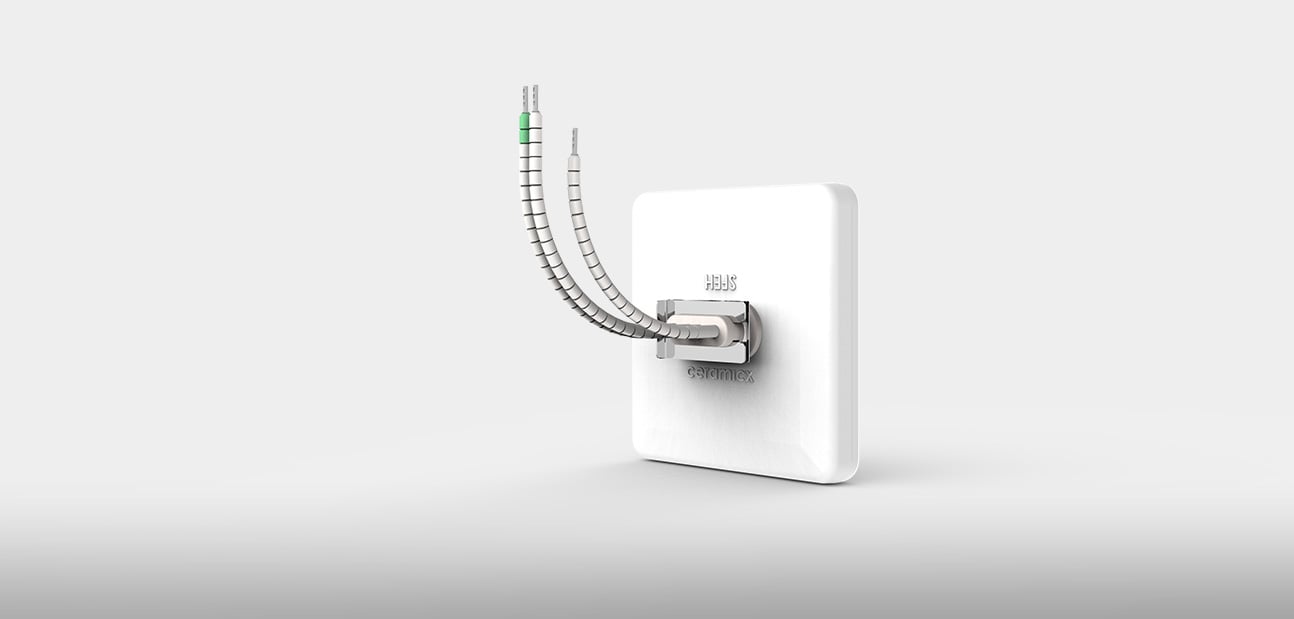

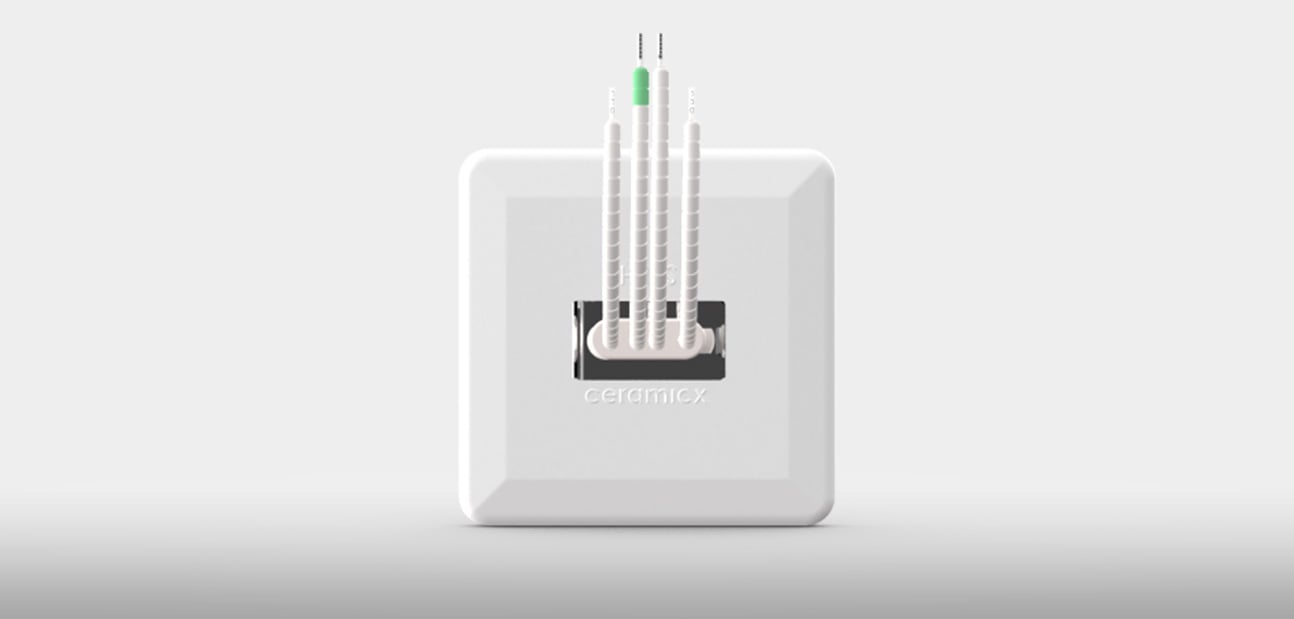

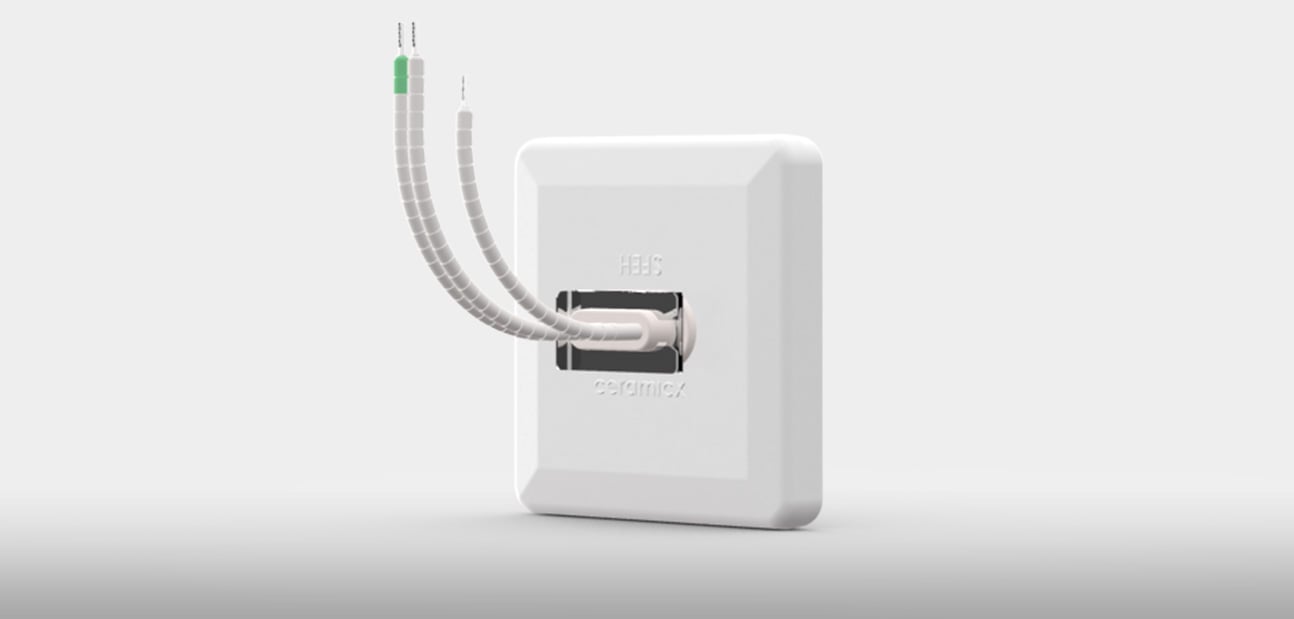

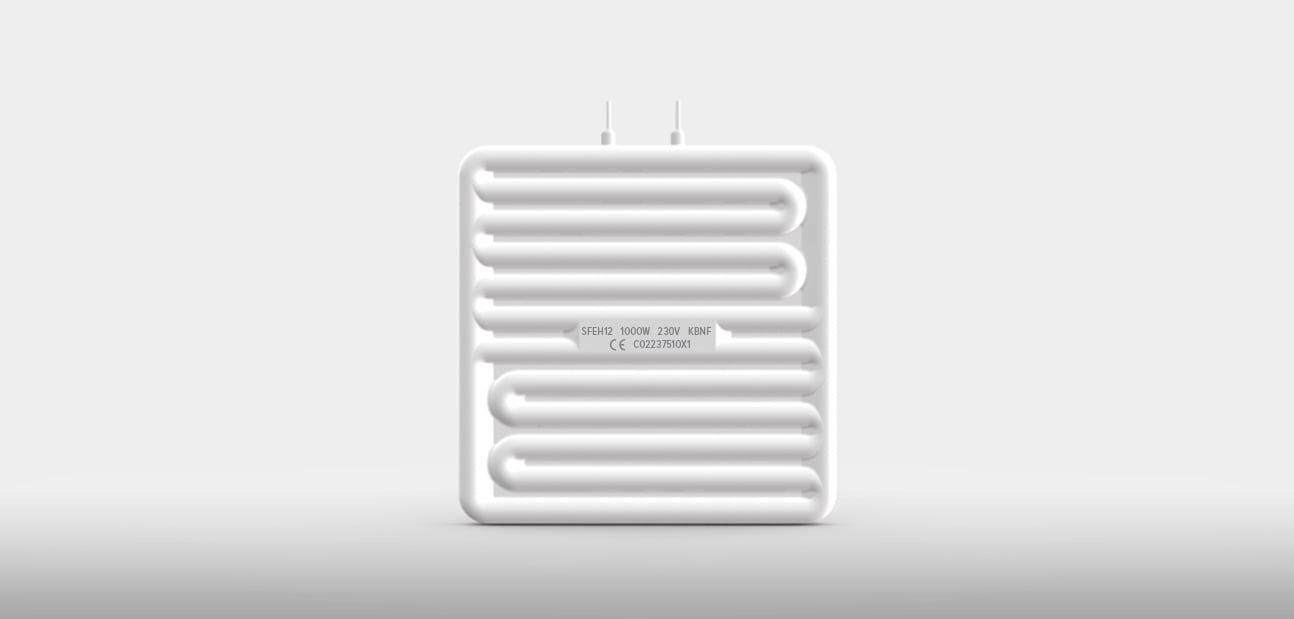

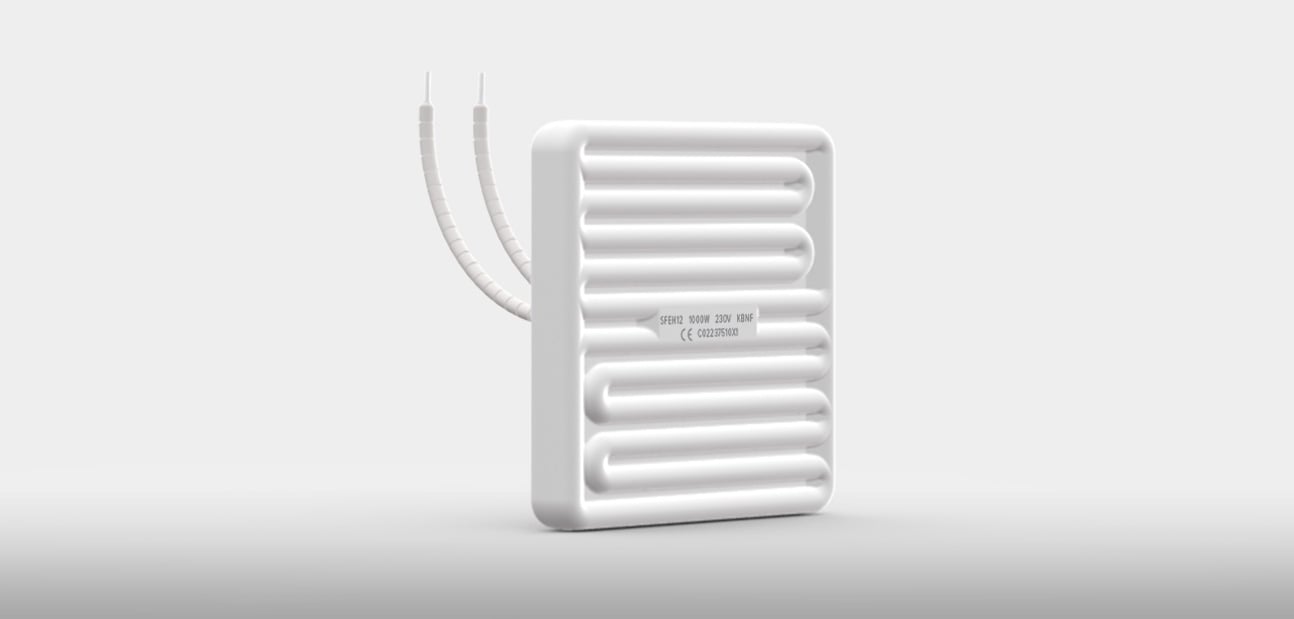

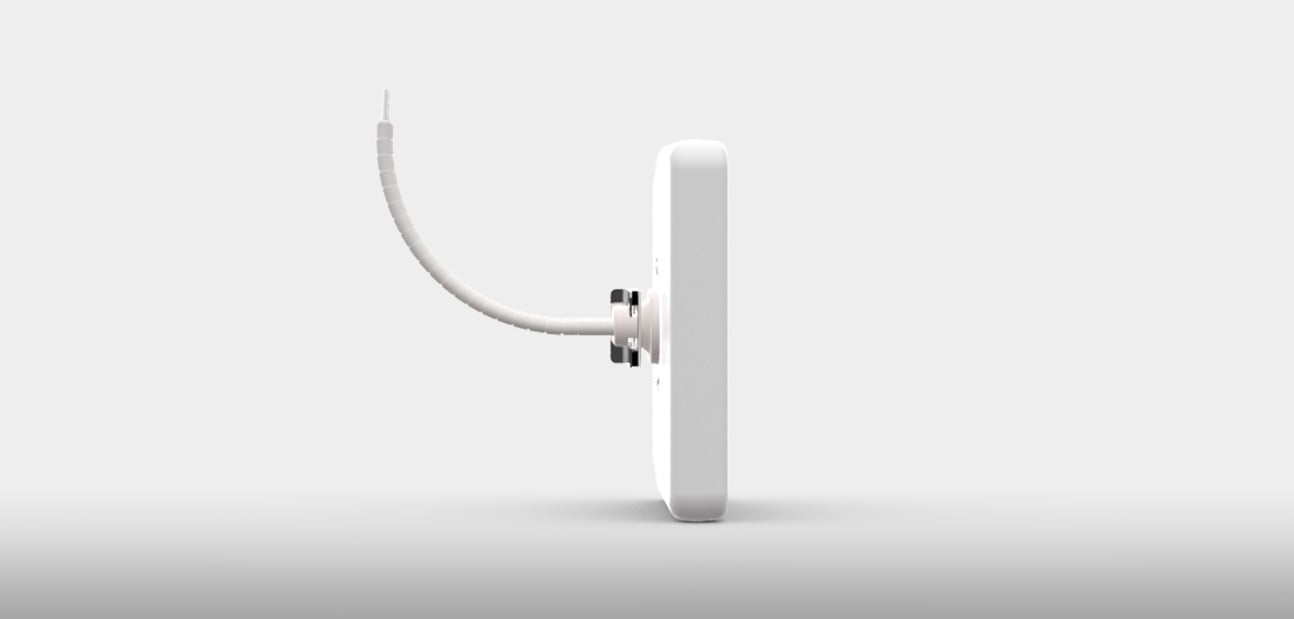

Ceramic Square Flat Infrared Heating Element Hollow (SFEH)

An industry-standard ceramic infrared heater (400 – 1000 W), our ceramic square flat hollow heater element is designed for long-lasting energy-efficiency in industrial, commercial and domestic applications where a high surface temperature is needed.

Available: 400 – 1000 W

Size: 122 x 122 x 37.5 mm

Average weight: 270 g

Iron-chrome aluminium resistance wire

Heater Voltage: 230 V standard

Other Variations: Voltages, Wattages, lead length and terminations available on request

Useful wavelength range: 2 – 10 microns

Average Operating Life: 20,000 hrs depending on conditions

Recommended radiation distance from heater is 100 mm to 200 mm

Minimum recommended spacing between elements: 5 mm

Supplied with 120 mm ceramic beaded power leads

Technical information

Available Wattage4005006008001000
Mean surface temp (°C)497548602710755
Max power density (kW/m2)24.83137.249.660
Radiant Watt density at 100mm (W/cm2)0.510.811.18

Based on tests of average surface temperature measured with an thermal imaging camera set at an emissivity of 0.95 (element mounted in an polished aluminium coated steel reflector, RAS)
