Half Trough Element (HTE)

This product is not available to buy online in your country.
Please contact your local distributor for current price and availability.

Clear

Description

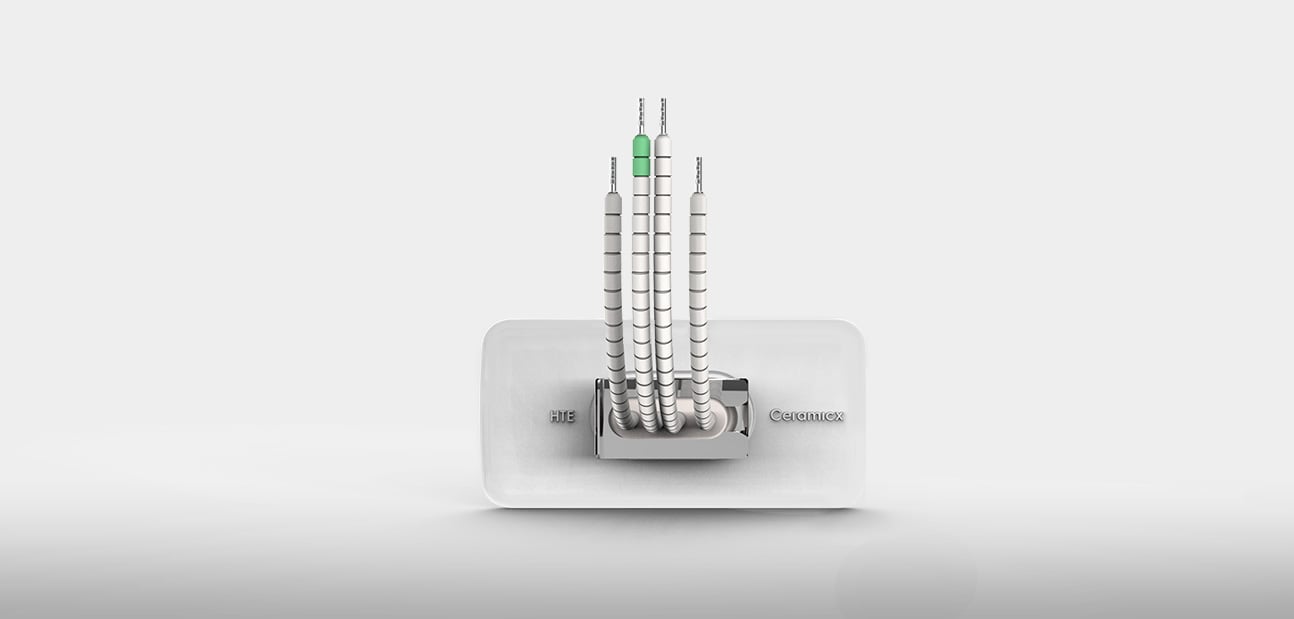

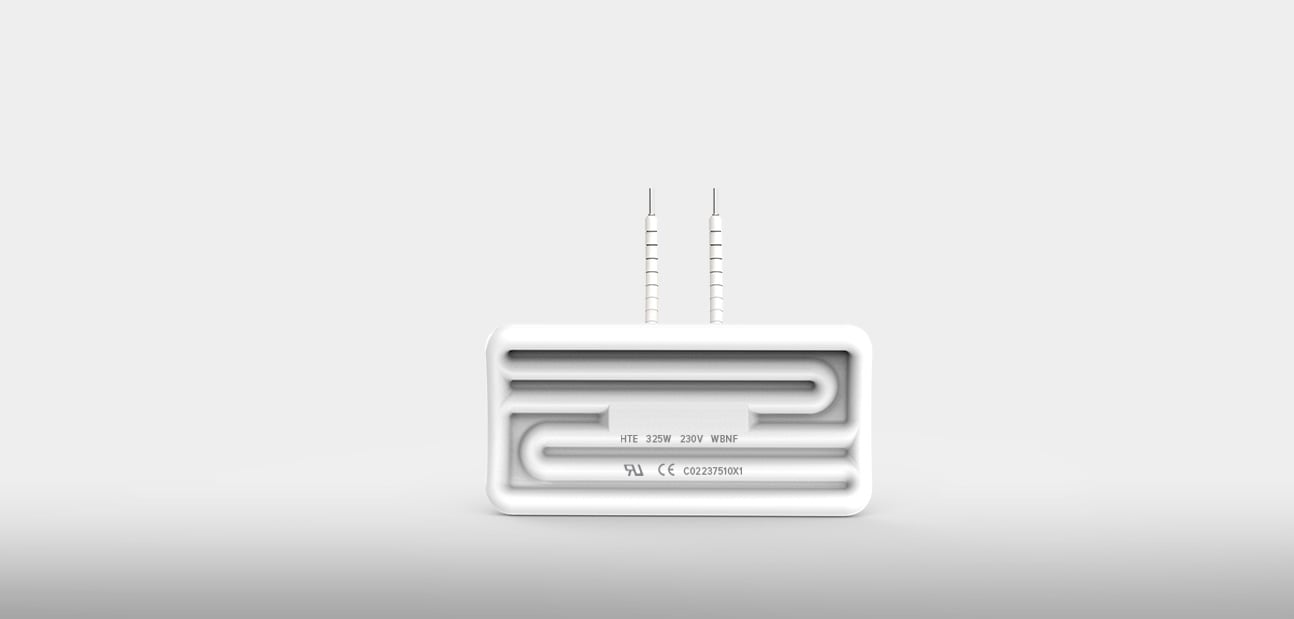

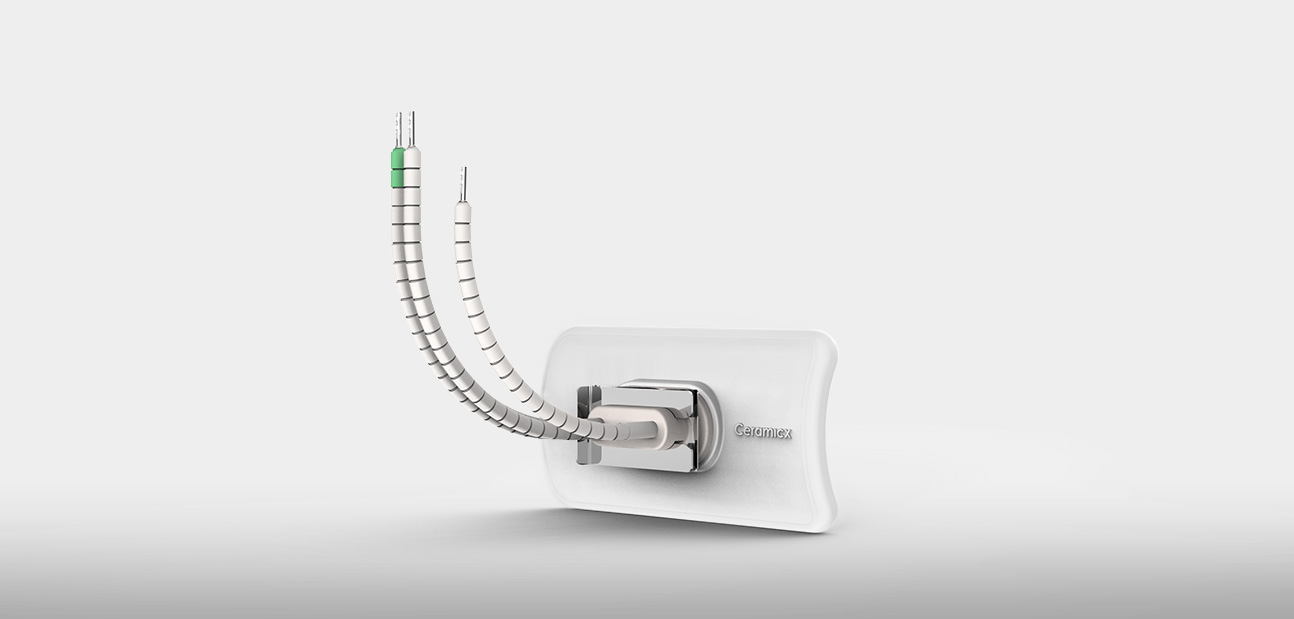

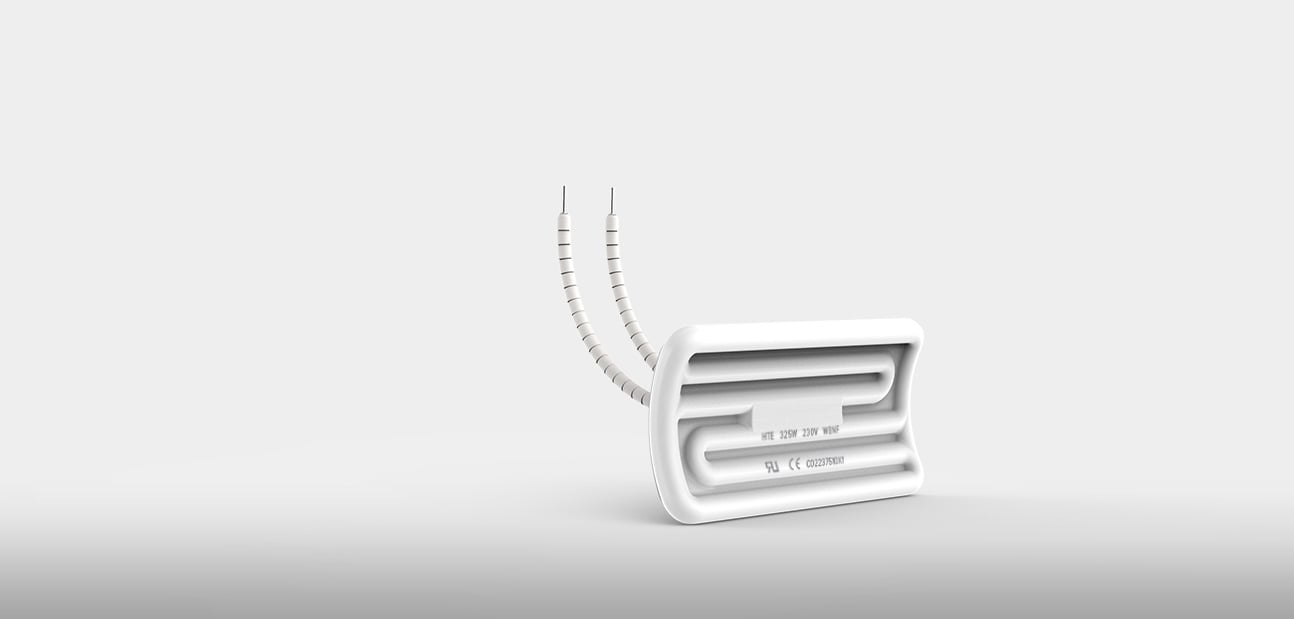

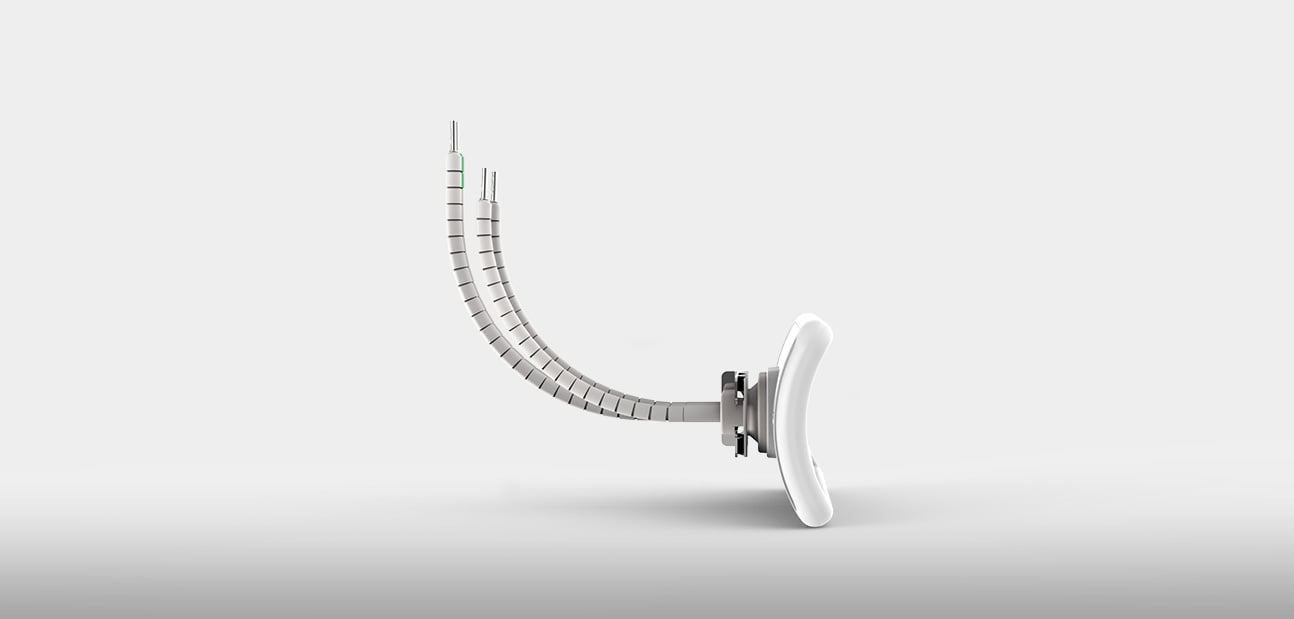

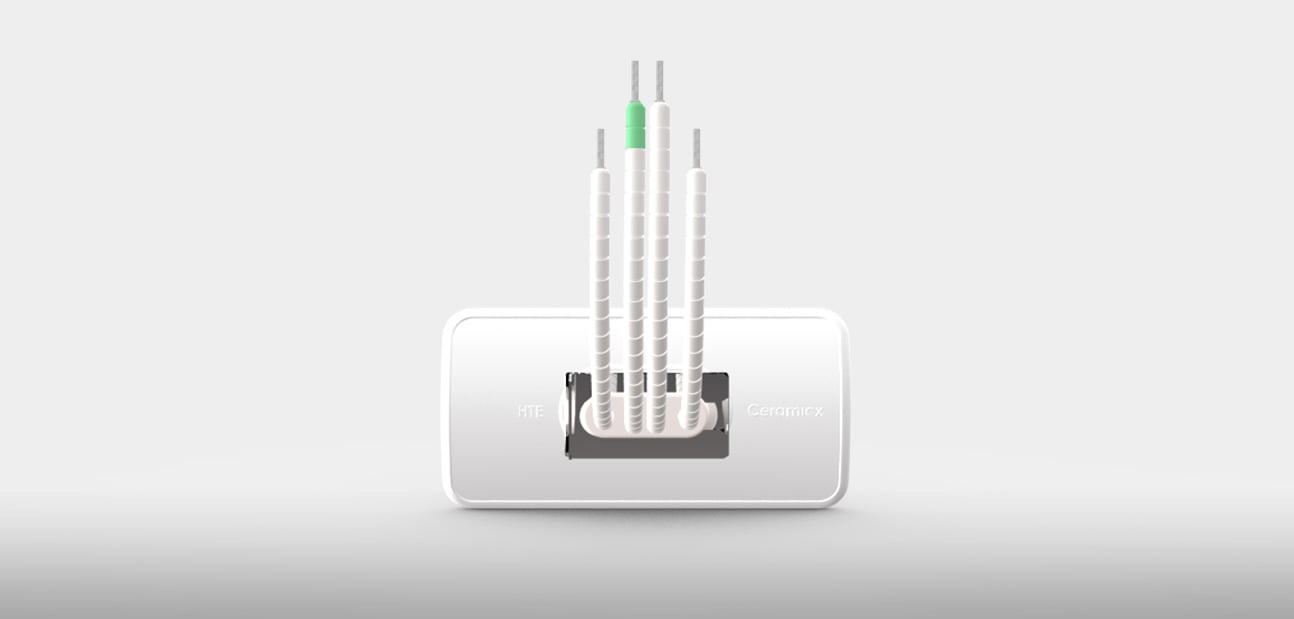

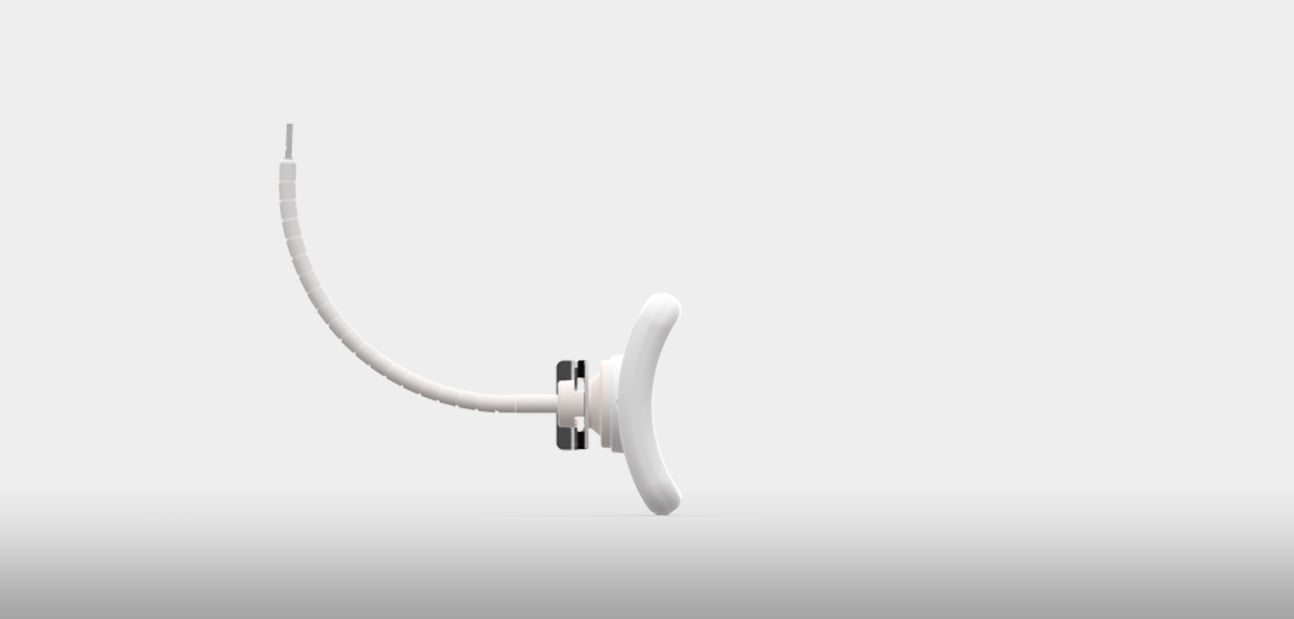

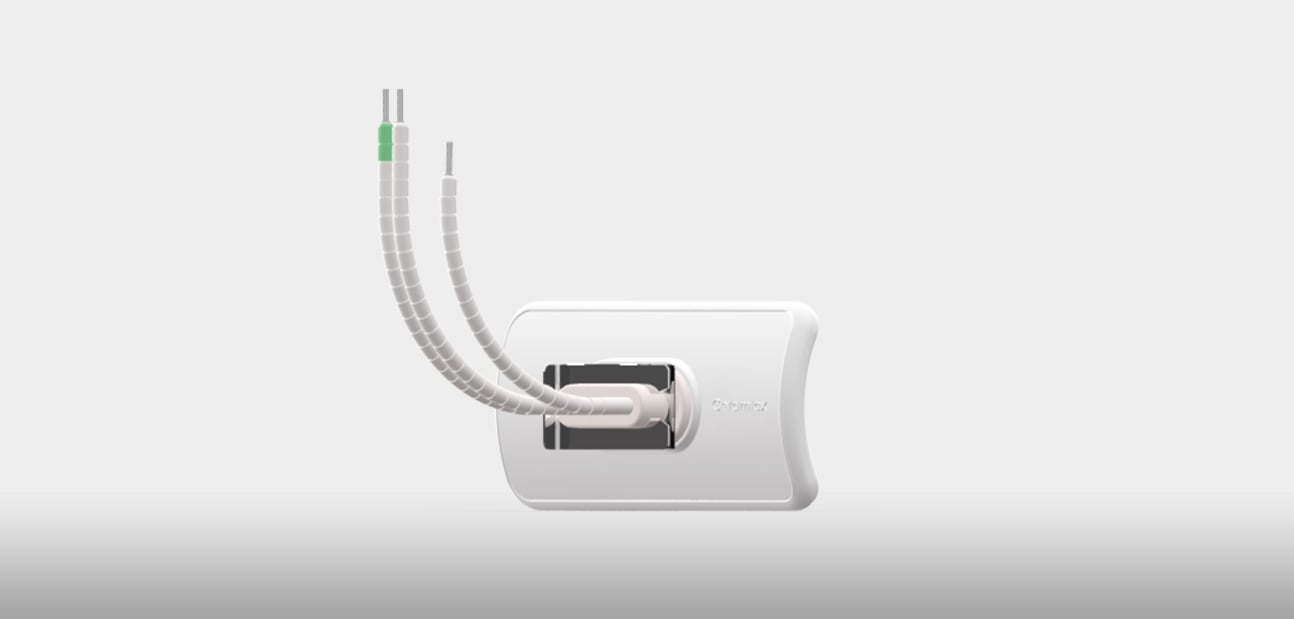

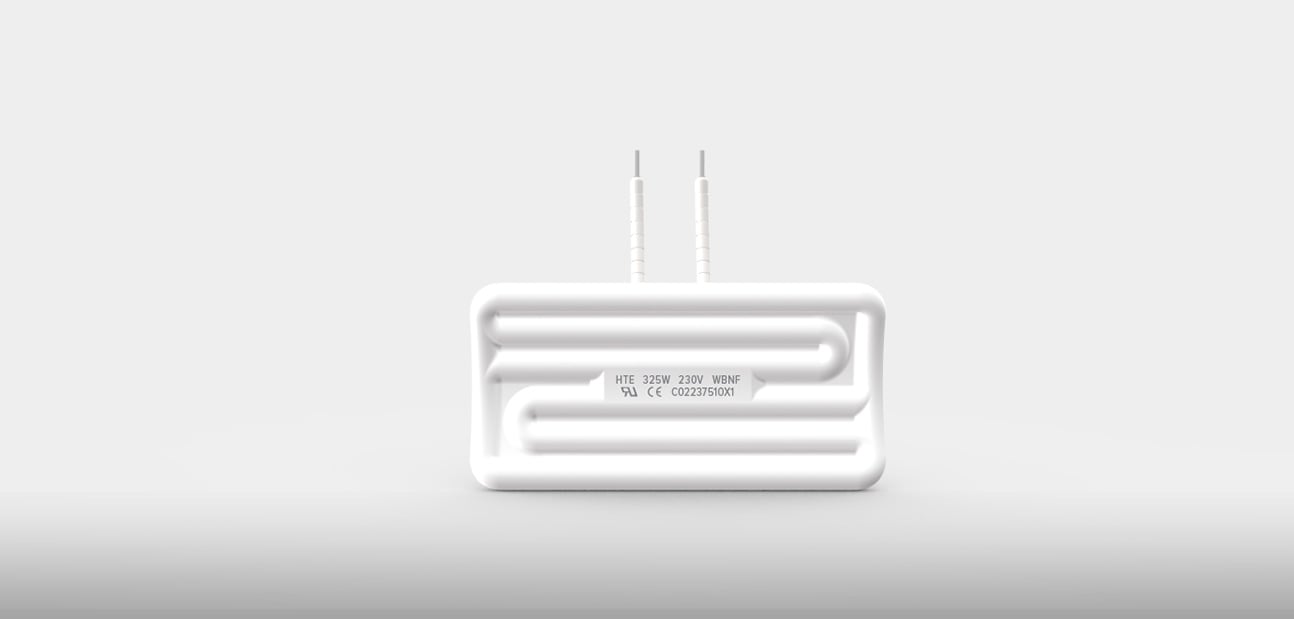

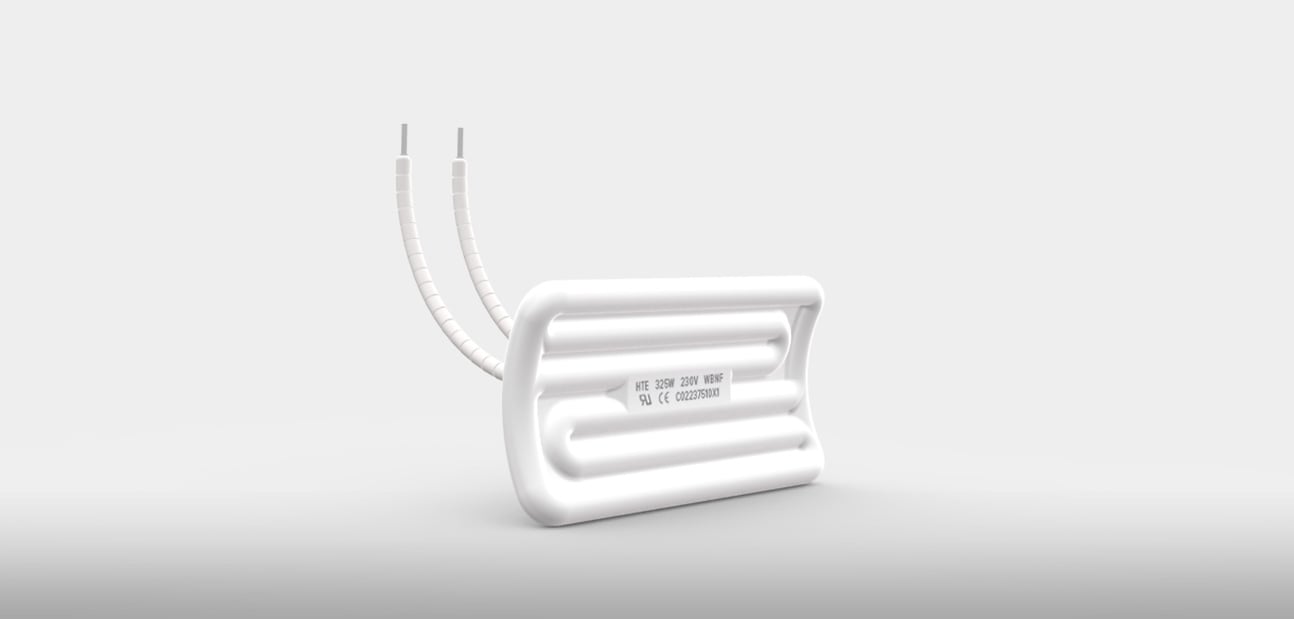

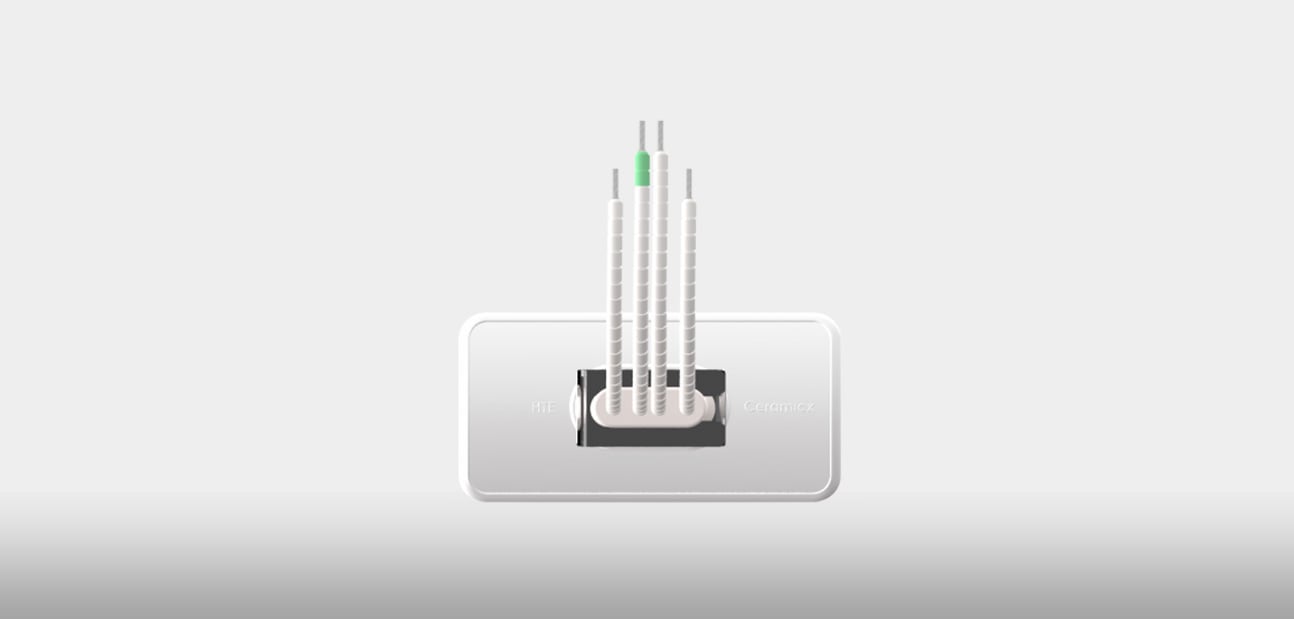

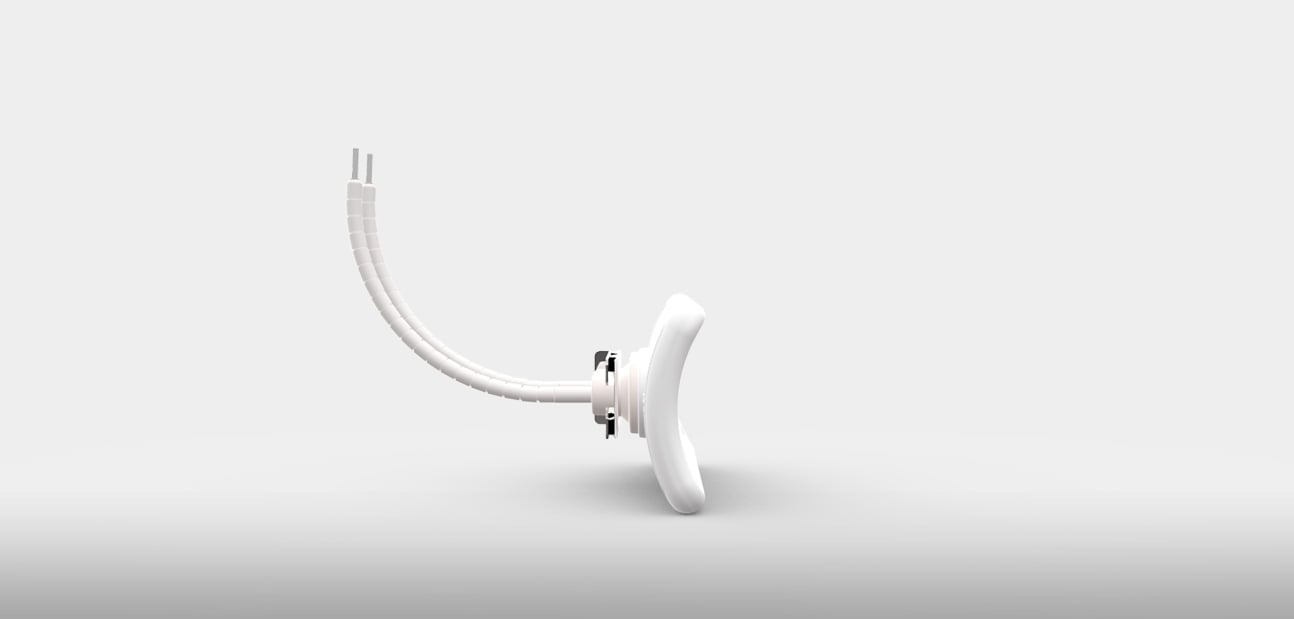

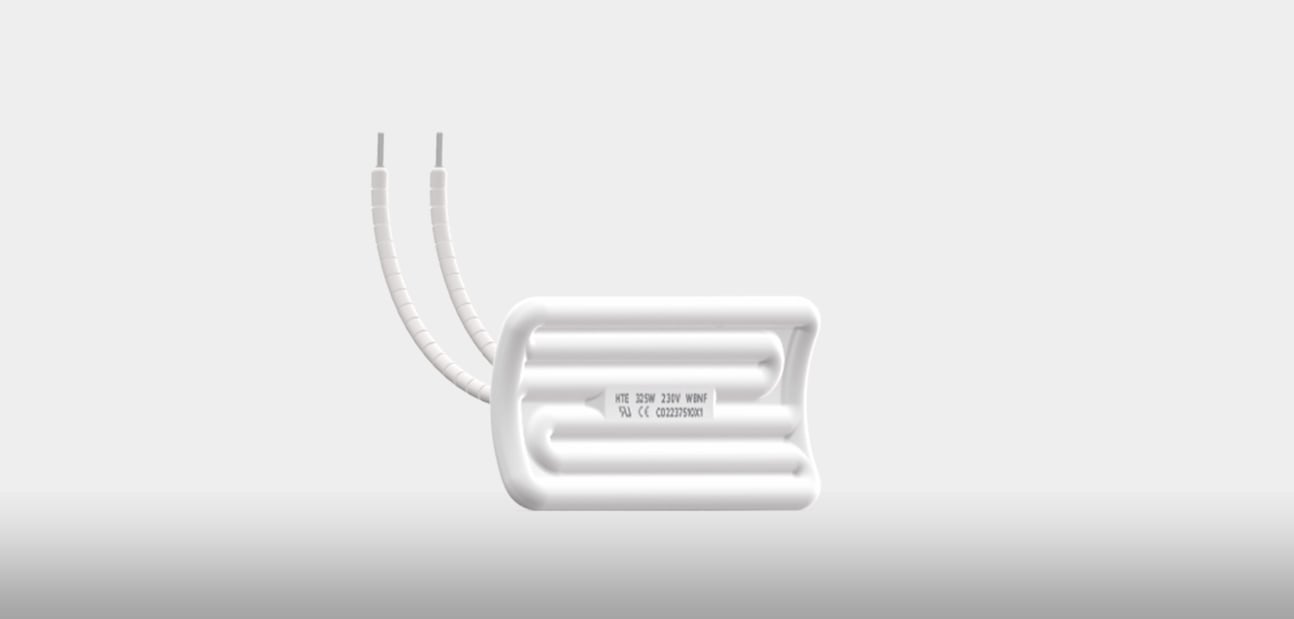

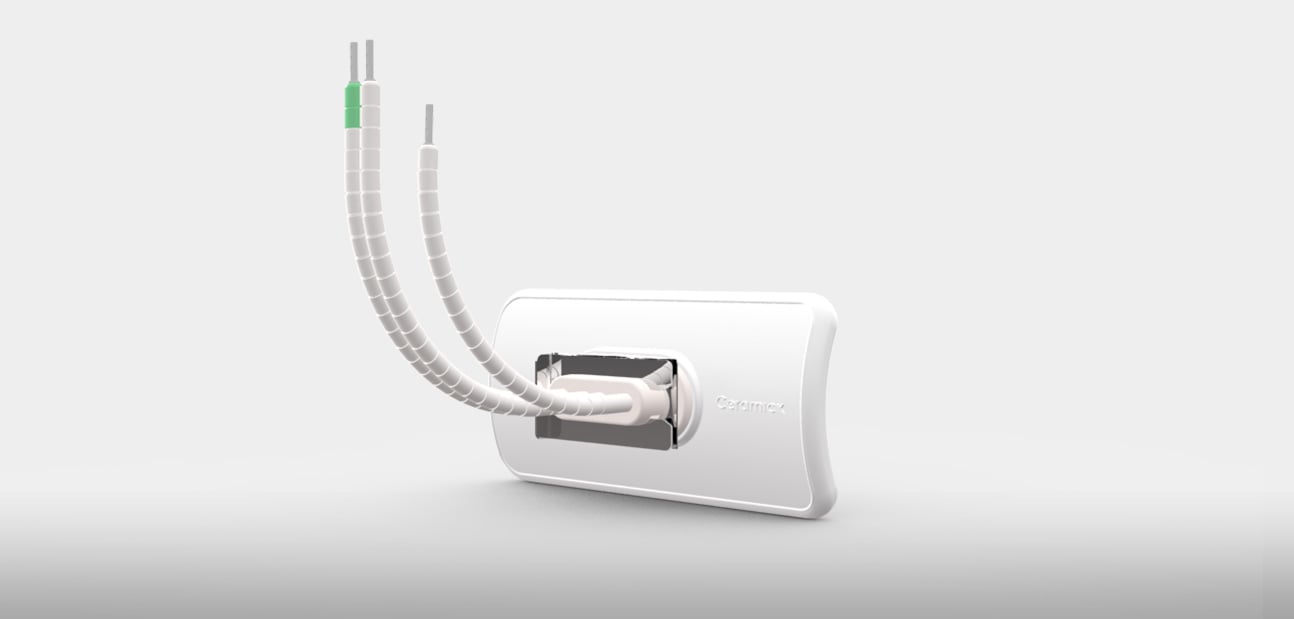

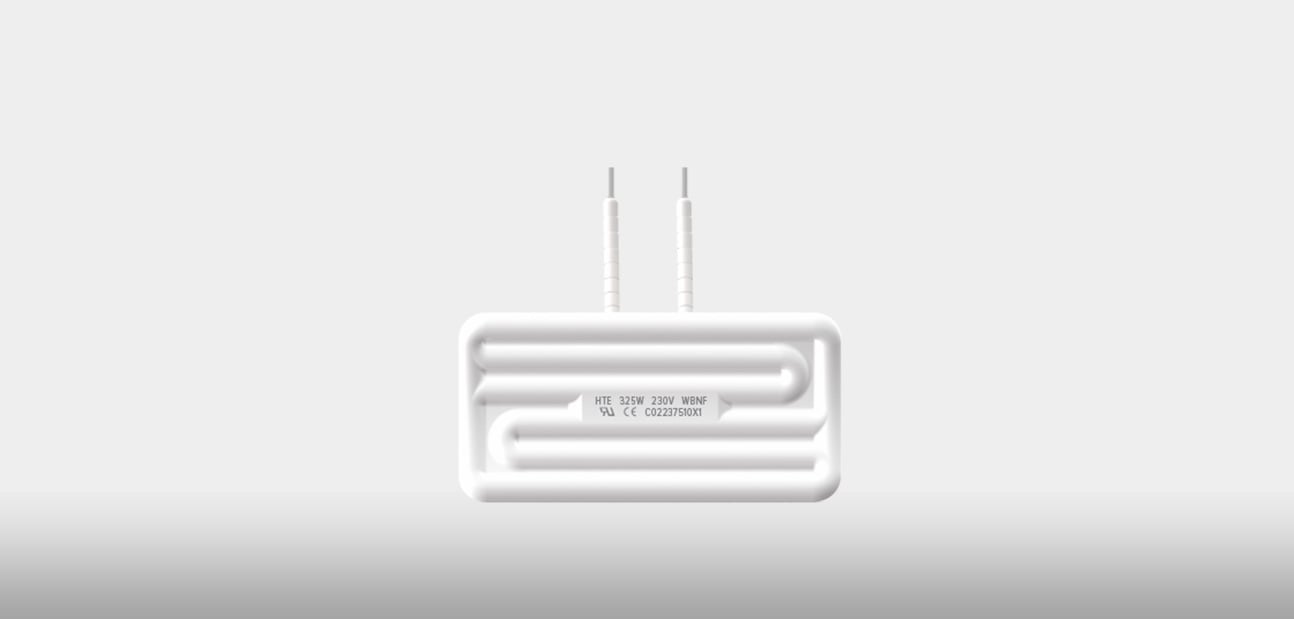

Ceramic Half Trough Infrared Heating Element (HTE)

An industry-standard ceramic infrared heater (125 – 500W), our ceramic half trough heater element is designed for long-lasting energy-efficiency in industrial, commercial and domestic applications where a high surface temperature is needed.

Available Wattage: 125 – 500W

Size: 122 x 60 x 34mm

Average weight: 105g

Iron-chrome aluminium resistance wire

Heater Voltage: 230V standard

Other Variations: voltages, wattages, lead length and terminations available on request

Useful wavelength range: 2-10 microns

Average Operating Life: 20,000 hrs depending on conditions
Click here for details of UL Approval

Recommended radiation distance from heater is 100 mm to 200 mm.

Minimum recommended spacing between elements: 5mm.

Supplied with 100mm ceramic beaded power leads

Available Wattage125150200250300325400500
Mean surface temp (°C)351405480515561596636726
Max power density (kW/m2)15.118.124.230.236.339.348.460.5

Based on tests of average surface temperature with an infrared thermometer set at an emissivity of 0.95 (element mounted in an aluminised steel reflector, RAS)

Installation Instructions
