Portable Infrared Test Stand

This product is not available to buy online in your country.
Please contact your local distributor for current price and availability.

Description

Giving you fast, reliable, and consistent material testing, the innovative Ceramicx Portable Test Stand lets you quickly determine the most suitable type of infrared emitter and heating distance you need for a specific material, with consistent results.

Included with the test stand are a range of 3 different infrared emitter types, each housed in a Ceramicx modified projector. When one of the selected emitter types is connected to begin testing, your material will heat when placed on the stand’s stainless steel mesh test plate.

With an easily adjustable height, the distance between emitter and material can be positioned between 50mm and 200mm, in 50mm intervals, for maximum testing range.

To see the Portable Test Stand in action, see video tab in the menu on the right.

Technical information

Maximum Current: 7A

Height adjustable test stand with fixed position material tray

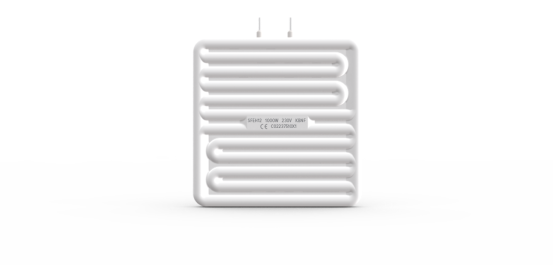

1.6 kW 230 V ceramic long wave heater assembly (Ceramic Element SFEH-800W)

1.5 kW 230 V quartz medium wave heater assembly (Quartz elements FQE-750W)

1.5 kW 230 V tungsten heater assembly* (Tungsten tubes QTS-750W)

Fluke 62 MAX infrared thermometer



*Supplied with interchangeable element models:

  • Fast medium wave QTS 750 W 240 V (x 2)
  • Short wave QHS 750 W 240 V (x 2)

Video

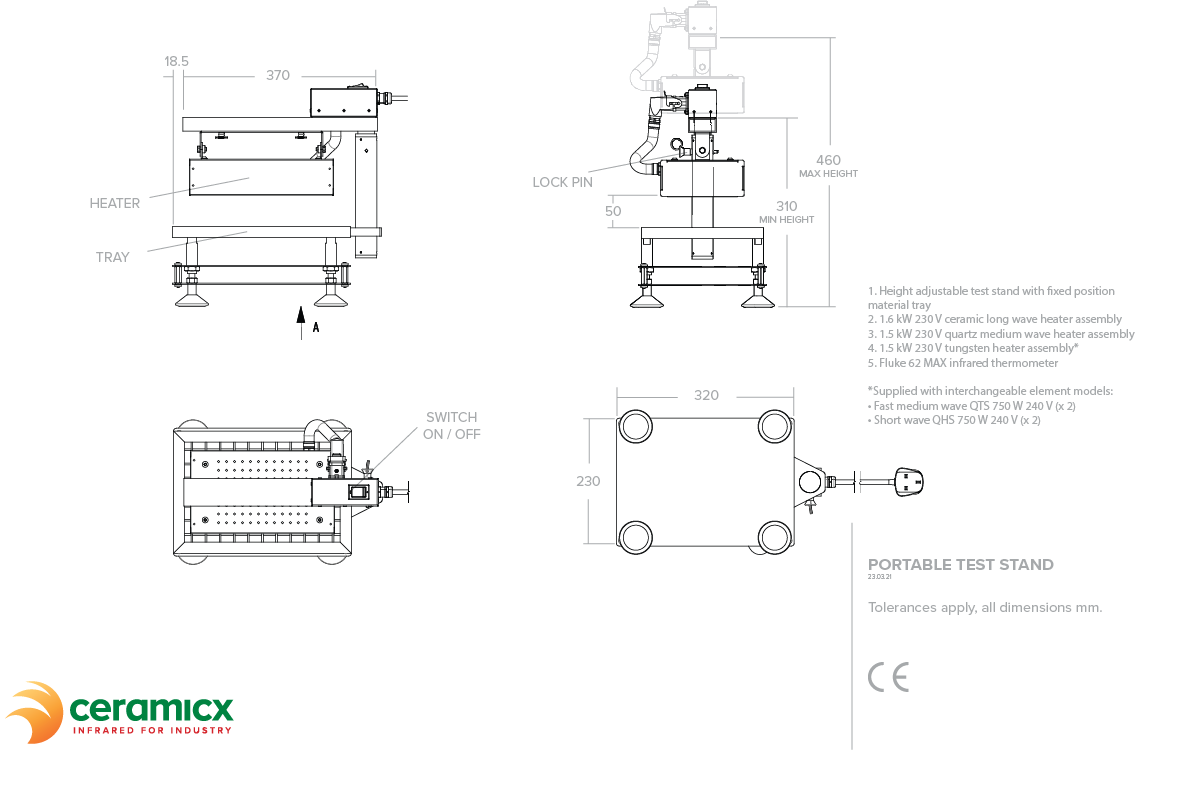

Drawings
